Section 39 (LAN Communication System (Diagnostics)): Electrical Component Location: Location
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

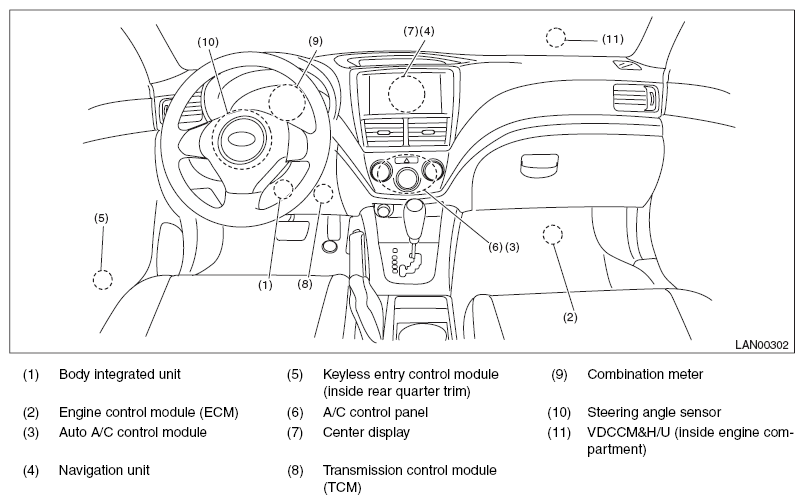

Fig 1: Identifying Lan System Components Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

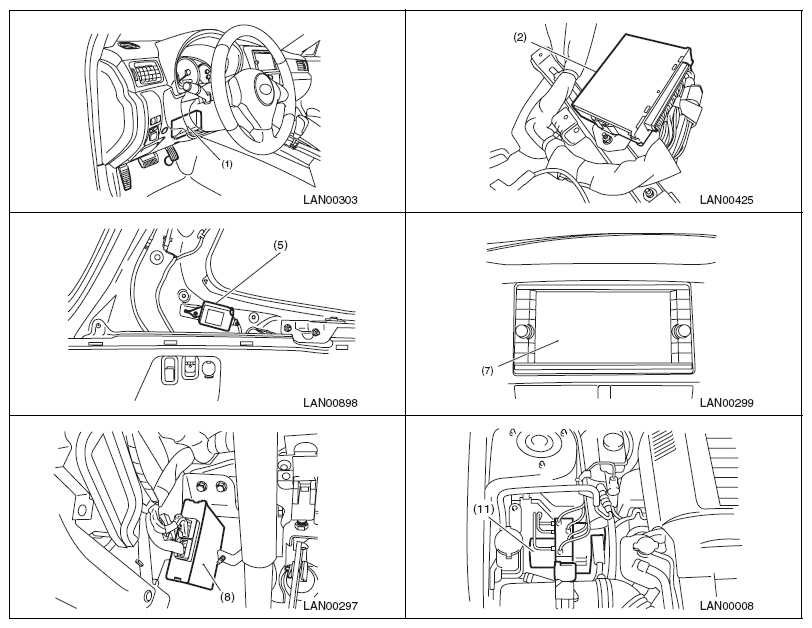

Fig 2: Identifying Lan System Components Location (2 Of 2)
