DTC B1106 Shift Lock Circuit Failure: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Shift lock control system< Refer to SYSTEM WIRING DIAGRAMS. >

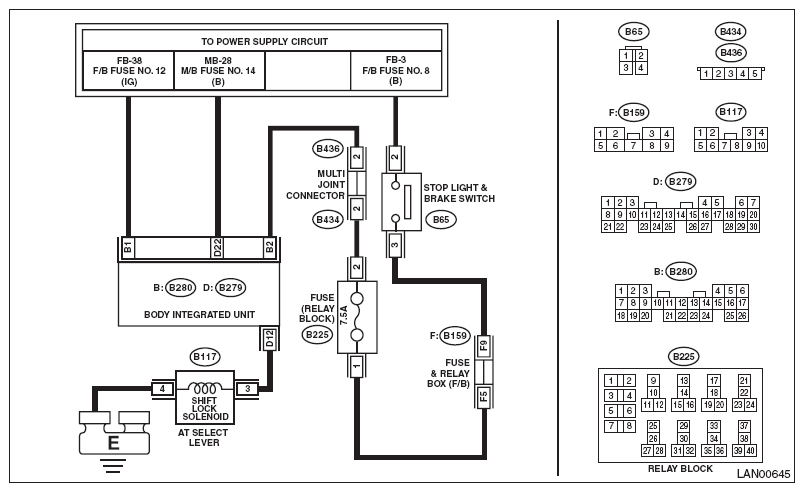

Fig 1: Shift Lock Circuit - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
