Brake Warning Light Does Not Go Off: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Parking brake / brake fluid level warning light system < Refer to System Wiring Diagram. / Brake Fluid Level Warning Light System. >

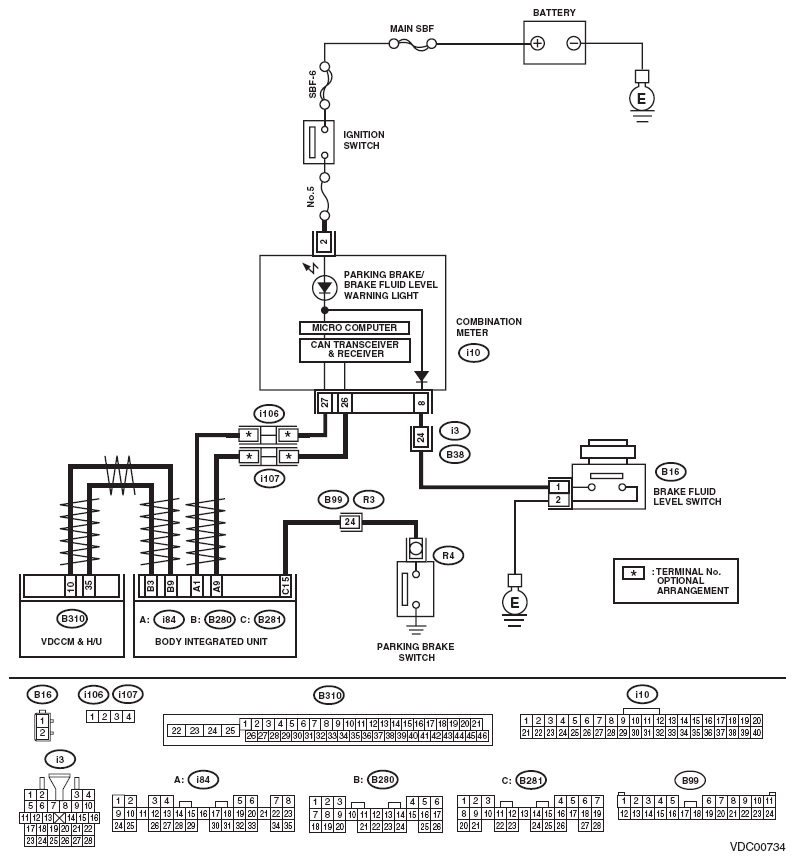

Fig 1: Parking Brake / Brake Fluid Level Warning Light System - Wiring Diagram
G08565595Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK INSTALLATION OF VDCCM&H/U CONNECTOR.
  1. Turn the ignition switch to OFF.
  2. Check that the VDCCM&H/U connector is inserted until it is locked by clamp.
 Is the connector firmly inserted? Go to step 2  . Insert the VDCCM&H/U connector until it is locked by clamp.
2 READ DTC.
Read the DTC. < Refer to READ DIAGNOSTIC TROUBLE CODE (DTC) . >		 Is DTC displayed? Perform the diagnosis according to DTC. < Refer to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > Go to step 3  .
3 CHECK BRAKE FLUID AMOUNT.
Check the amount of brake fluid in the reservoir tank of master cylinder.		 Does the level of the brake fluid amount fall between the lines of "MAX" and "MIN"? Go to step 4  . Replenish brake fluid to the specified value.
4 CHECK BRAKE FLUID LEVEL SWITCH.
  1. Turn the ignition switch to OFF.
  2. Disconnect the level switch connector (B16) from master cylinder.
  3. Measure the resistance of master cylinder terminals.

    Terminals

    No. 1 - No. 2:

 Is the resistance 1 MΩ or more? Go to step 5  . Replace the master cylinder. < Refer to MASTER CYLINDER . >
5 CHECK GROUND SHORT OF HARNESS.
  1. Disconnect the connector (i10) from combination meter.
  2. Measure the resistance between combination meter connector and chassis ground.

    Connector & terminal

    (i10) No. 8 - Chassis ground:

 Is the resistance 1 MΩ or more? Go to step 6  . Repair the ground short circuit in harness between combination meter and brake fluid level switch.
6 CHECK PARKING BRAKE SWITCH.
  1. Disconnect the connector (R4) from parking brake switch.
  2. Release the parking brake.
  3. Measure the resistance between parking brake switch terminal and chassis ground.
 Is the resistance 1 MΩ or more? Go to step 7  . Replace the parking brake switch.
7 CHECK GROUND SHORT OF HARNESS.
  1. Disconnect the connector (B281) from body integrated unit.
  2. Measure the resistance between body integrated unit connector and chassis ground.

    Connector & terminal

    (B281) No. 15 - Chassis ground:

 Is the resistance 1 MΩ or more? Go to step 8  . Repair the ground short circuit of harness between body integrated unit and parking brake switch.
8 CHECK POOR CONTACT OF CONNECTOR.
Check for poor contact of all connectors.		 Is there poor contact? Repair the connector. Go to step 9  .
9 CHECK LAN SYSTEM.
Perform the diagnosis for LAN system. < Refer to BASIC DIAGNOSTIC PROCEDURE . >		 Is there any fault in LAN system? Perform the diagnosis according to DTC for LAN system. < Refer to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > Go to step 10  .
10 CHECK COMBINATION METER.
Check the combination meter. < Refer to INSPECTION , Combination Meter System. >		 Is combination meter OK? Replace the VDCCM only. < Refer to REPLACEMENT , VDC Control Module and Hydraulic Control Unit (VDCCM&H/U). > Replace the combination meter. < Refer to COMBINATION METER . >
