DTC C0075 Reverse Signal: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Back-up light system < Refer to System Wiring Diagram / Back-up Light System. >

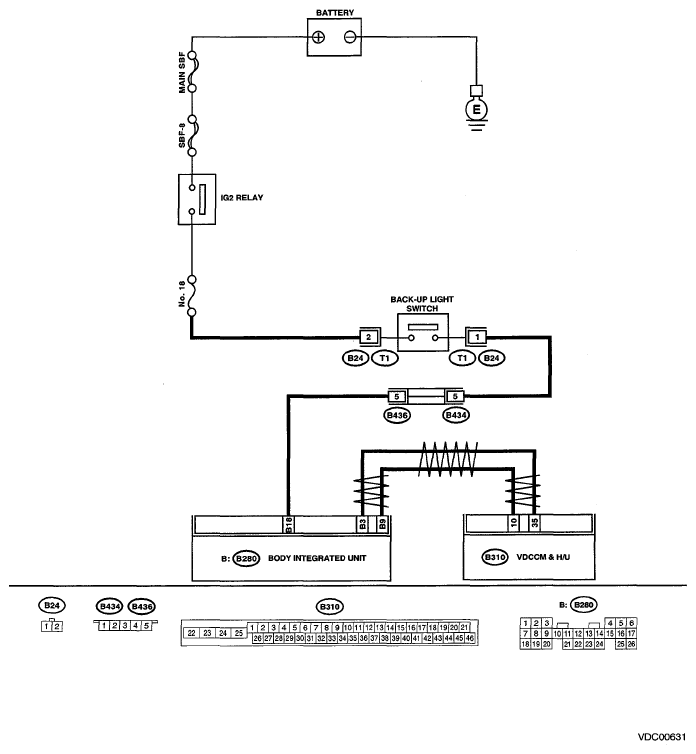

Fig 1: Back-Up Light System - Wiring Diagram
G05957129Courtesy of SUBARU OF AMERICA, INC.
