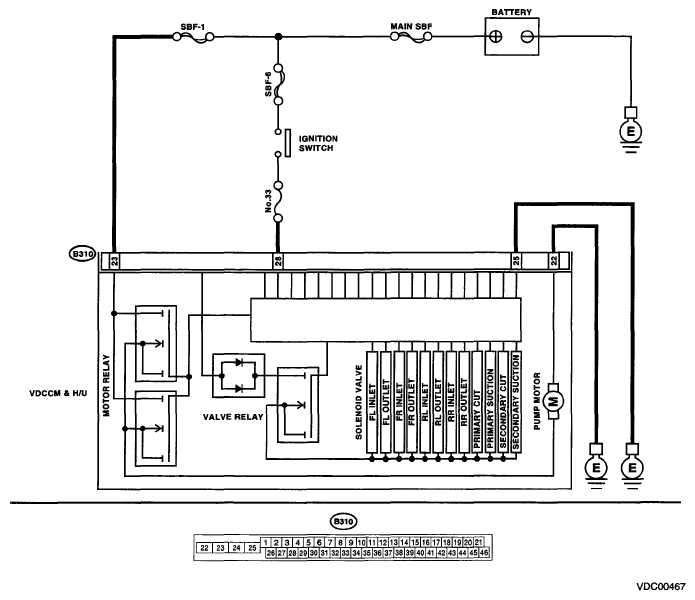

DTC C0052 Motor And Motor Relay Off Failure: Wiring Diagram
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Vehicle Dynamics Control System < Refer to
System Wiring Diagram.>
