DTC C0051 Valve Relay: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Vehicle Dynamics Control System < Refer to System Wiring Diagram. >

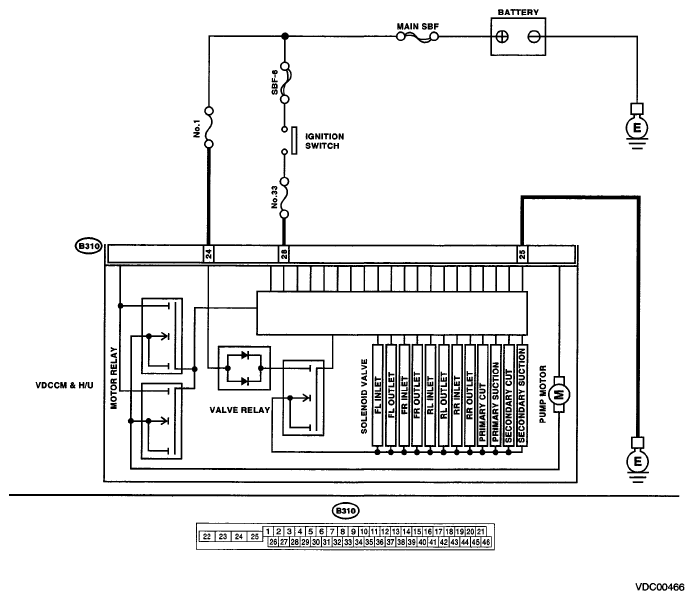

Fig 1: Valve Relay - Wiring Diagram
G05343461Courtesy of SUBARU OF AMERICA, INC.
