DTC P0327 Knock Sensor 1 Circuit Low (Bank 1 Or Single Sensor): Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Engine electrical system, turbo model < Refer to appropriate SYSTEM WIRING DIAGRAM.>

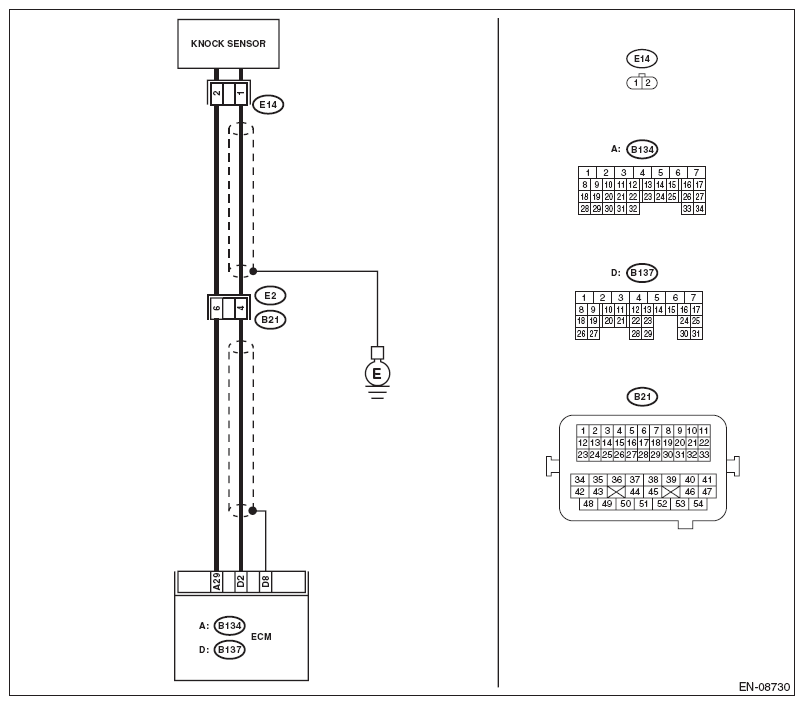

Fig 1: Knock Sensor 1 - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
