Oil Pressure Switch: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the engine oil is spilled over exhaust pipe or the under cover, wipe it off with cloth to avoid emitting smoke or causing a fire.

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the rubber cap.

Fig 2: Identifying Rubber Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the terminal from oil pressure switch.

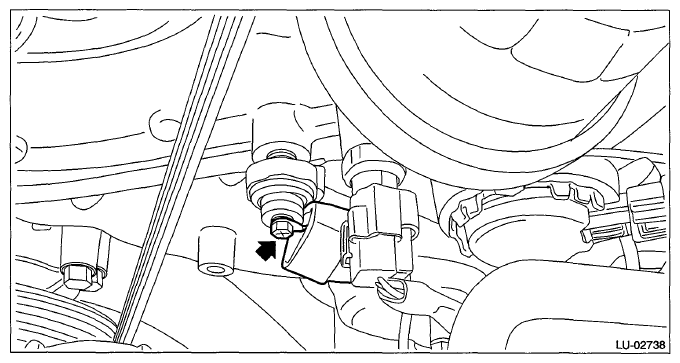

Fig 3: Identifying Oil Pressure Switch Terminal Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pressure switch.
CAUTION:
Catch the engine oil using cloth to prevent it from splashing.

Fig 4: Identifying Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
