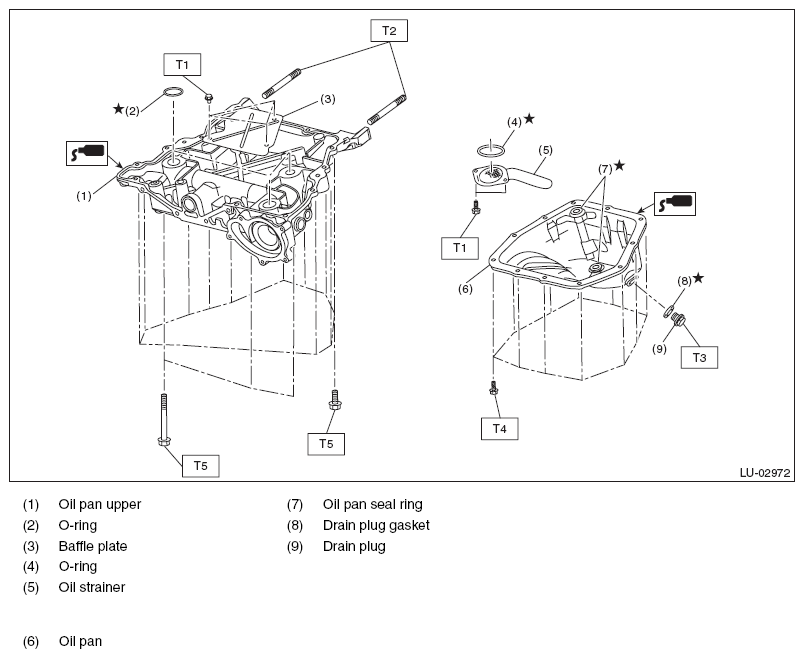

Oil Pan And Strainer
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 10 (1.0, 7.4)
T3: 41.7 (4.3, 30.8)
T4: < Refer to OIL PAN , INSTALLATION, Oil Pan and Strainer. >
T5: < Refer to OIL PAN UPPER , INSTALLATION, Oil Pan and Strainer. >
