Towing Hook (Eyebolt)

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: At factory shipment, the towing hook (eyebolt) is installed to the rear bumper for securing the vehicle during transportation. Follow the procedure below to store the towing hook (eyebolt) to the holder in the spare tire.

Remove the towing hook (eyebolt) from the rear bumper.

Fig 1: Identifying Towing Hook (Eyebolt)
Courtesy of SUBARU OF AMERICA, INC.
Store the towing hook (eyebolt) to the holder in the spare tire.

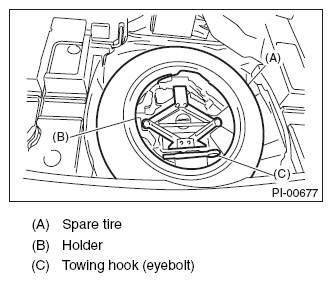

Fig 2: Identifying Spare Tire, Holder And Towing Hook (Eyebolt)
Courtesy of SUBARU OF AMERICA, INC.
Install the supplied rear hook cover to rear bumper.

Fig 3: Identifying Rear Hook Cover
Courtesy of SUBARU OF AMERICA, INC.
