Engine Oil

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If engine oil is spilt onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.

Check the engine oil amount. If the amount of oil is insufficient, check that no leaks are found. Then, add the necessary amount of the specified engine oil.

Non-turbo model

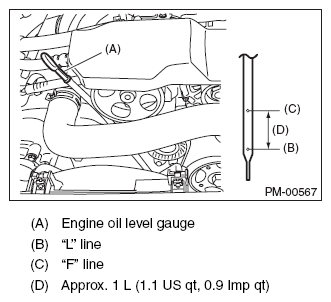

Fig 1: Identifying Engine Oil Level Gauge With Upper And Lower Limit (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Turbo model

Fig 2: Identifying Engine Oil Level Gauge With Upper And Lower Limit (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
