Rear Seat: Assembly

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not reuse hog rings.
Secure the hog ring using hog ring pliers.
Install the hog rings to the specified points securely and make sure that there is no wrinkle or twisting on backrest cover.

NOTE:

Do not contaminate or damage the cover.
While installing the hog rings, prevent the seat from getting wrinkled.

Assemble the seat cover in the same manner as the front seat. < Refer to ASSEMBLY , Front Seat. >
Make sure that all hog rings (A) are attached securely.

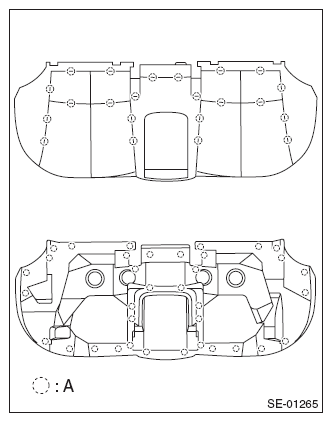

Fig 1: Identifying Hog Rings On Rear Seat
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Hog Rings On Rear Seat Cover
Courtesy of SUBARU OF AMERICA, INC.
- Model with seat table

  Fig 3: Identifying Hog Rings On Rear Seat (Model With Seat Table)
  Courtesy of SUBARU OF AMERICA, INC.
Assemble each part in the reverse order of disassembly.
