Rear Seat

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

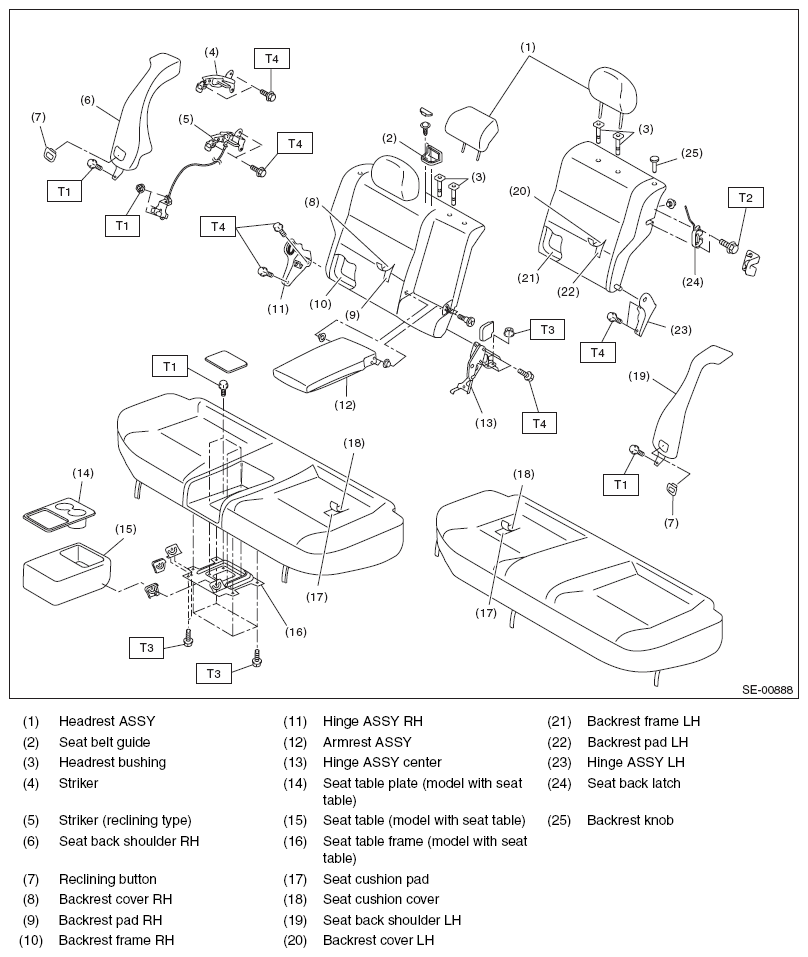

Fig 1: Rear Seat Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 17.6 (1.79, 13.0)

T3: 24.5 (2.49, 18.1)

T4: 33 (3.36, 24.3)
