Rear Exhaust Pipe: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Apply a coat of spray type lubricant to the mating area of cushion rubber.
Install the rear exhaust pipe to cushion rubber.
NOTE: After assembling, degrease the lubricant which was applied to the cushion rubber while removing/installing.

Fig 1: Locating Exhaust Pipe Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Install the rear exhaust pipe to the muffler.
NOTE: Use a new gasket and self-locking nut.

Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)

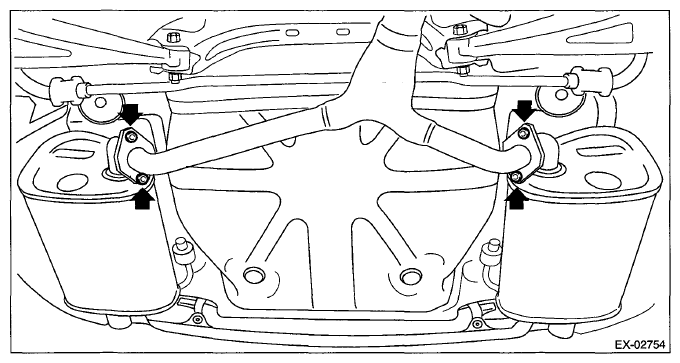

Fig 2: Locating Muffler Mounting Bolts Of Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe to rear exhaust pipe.
NOTE: Use a new gasket.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

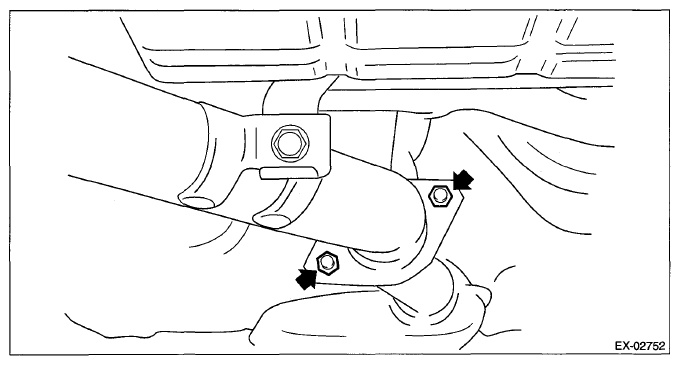

Fig 3: Locating Rear Exhaust Pipe Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
