Section 28 (Exhaust System (H4DO)): Muffler: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.

Lift up the vehicle.
Remove the rear exhaust pipe from the muffler.

Fig 1: Locating Rear Exhaust Pipe Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Apply a coat of spray type lubricant to the mating area of cushion rubber.
Remove the muffler from the cushion rubber.
CAUTION: Be careful not to drop the muffler during removal.

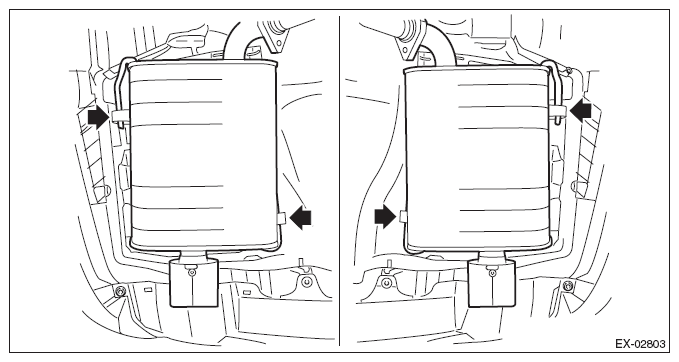

Fig 2: Locating Muffler Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
