Front Exhaust Pipe And Center Exhaust Pipe

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

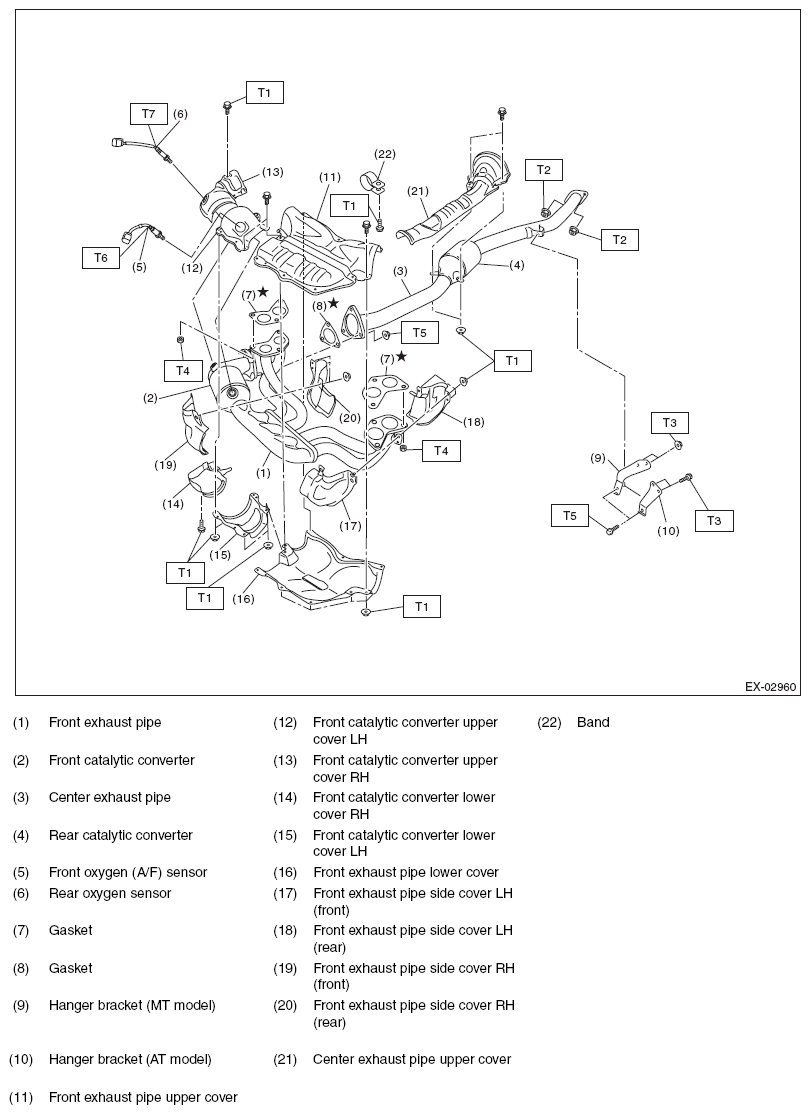

Fig 1: Front And Center Exhaust Pipe Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 18 (1.8, 13.3)

T3: 23 (2.3, 17.0)

T4: 30 (3.1, 22.1)

T5: 35 (3.6, 25.8)

T6: < Refer to INSTALLATION , Front Oxygen (A/F) Sensor. >

T7: < Refer to INSTALLATION , Rear Oxygen Sensor. >
