Purge Control Solenoid Valve: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE:

Hold the purge control solenoid valve unit by hand to prevent it from rotating together.
Connect the vacuum hose as shown in the figure.

Fig 1: Identifying Purge Control Solenoid Valve Ports
Courtesy of SUBARU OF AMERICA, INC.

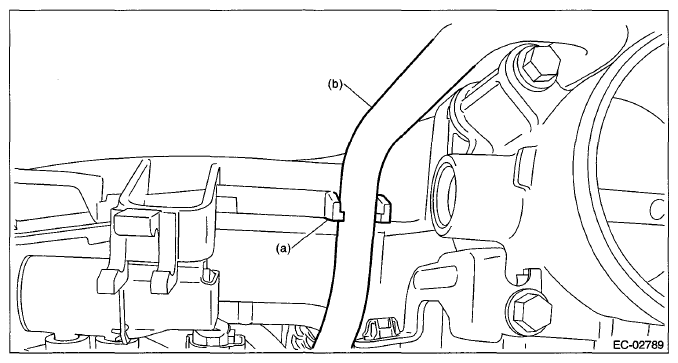

Check that the vacuum hose (b) is securely held to the clip (a) of the intake manifold.

Fig 2: Identifying Vacuum Hose And Clip
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
