PCV Valve: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not remove unless the PCV valve is broken.

Disconnect the vacuum hose from the intake manifold and the PCV valve.

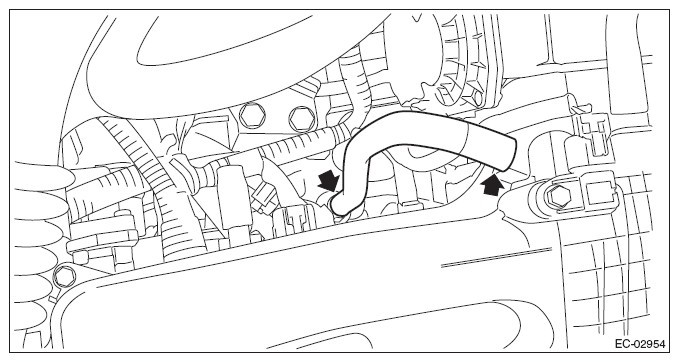

Fig 1: Locating Intake Manifold And PCV Valve Vacuum Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the PCV valve from the cylinder block RH.

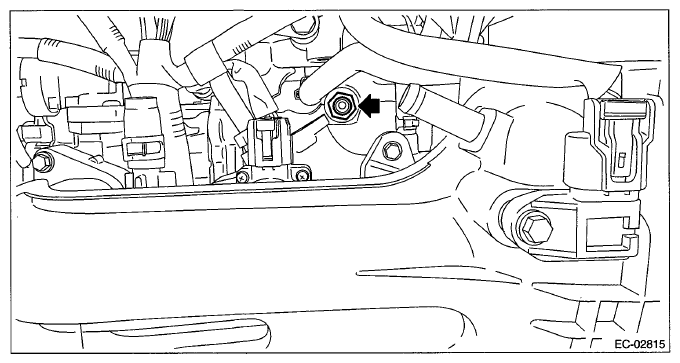

Fig 2: Locating PCV Valve Nut
Courtesy of SUBARU OF AMERICA, INC.
