Leak Check Valve Assembly: Disassembly

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the drain tube from the leak check valve assembly.

NOTE: Disconnect the quick connector as shown in the figure.
Fig 1: Disconnecting Quick Connector
G08570162Courtesy of SUBARU OF AMERICA, INC.

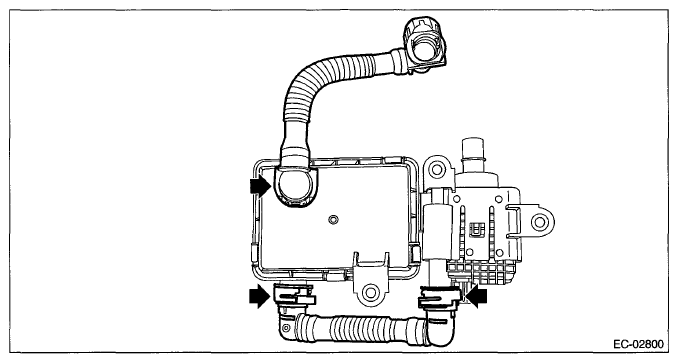

Fig 2: Locating Quick Connector
G07664947Courtesy of SUBARU OF AMERICA, INC.
