B: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Make sure the bolt is tightened securely because improper installation may cause the water leakage.
If the clip (b) is deformed or broken, replace it with a new part.
Install the clip (b) to the spoiler side first.
- Right side: Install clip (b) to the right of protrusions (c).
- Left side: Install clip (b) to the left of protrusions (c).

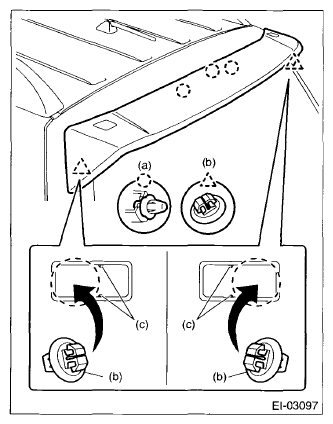

Fig 1: Installing Clip To Right And Left Protrusions Of Roof Spoiler

Courtesy of SUBARU OF AMERICA, INC.

Install each part in the reverse order of removal.

Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
