3. Under Protector

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

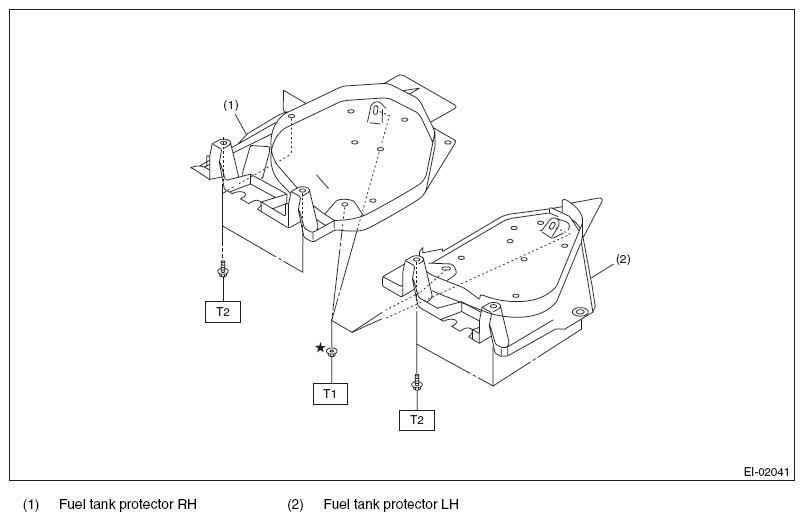

Fig 1: Fuel Tank Protector (RH And LH) With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T1: 9 (0.92, 6.5)

T2: 18 (1.84, 13.3)
