23. Trailer Hitch

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

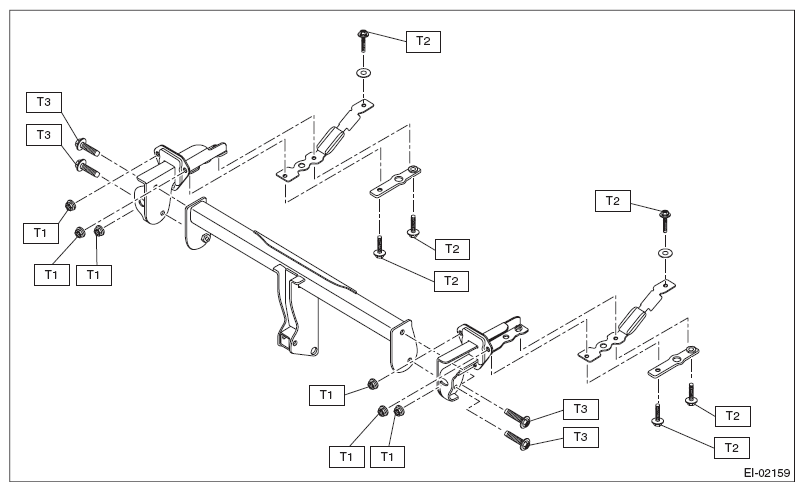

Fig 1: Trailer Hitch Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T1: 75 (7.65, 55.3)

T2: 90 (9.18, 66.4)

T3: 180 (18.35, 132.8)
