16. Instrument Panel

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

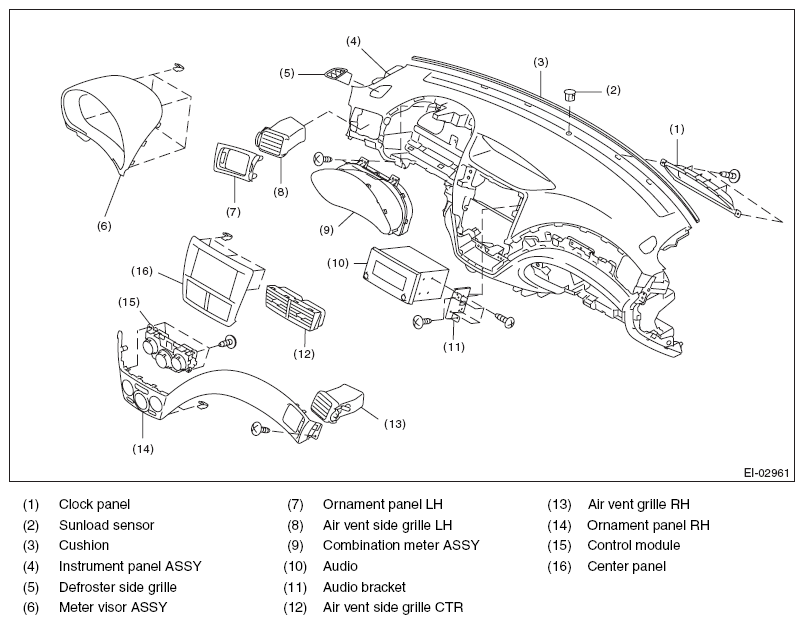

Fig 1: Identifying Instrument Panel Components (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

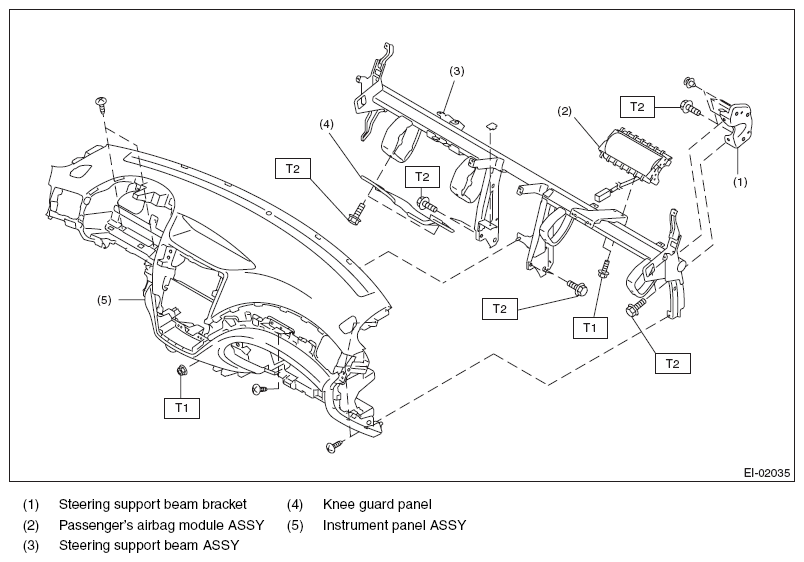

Fig 2: Identifying Instrument Panel Components (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

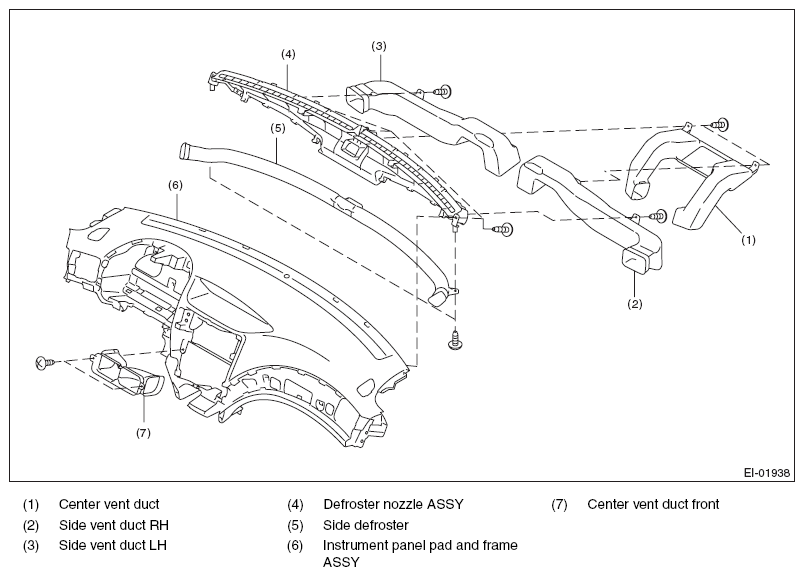

Fig 3: Identifying Instrument Panel Components (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)

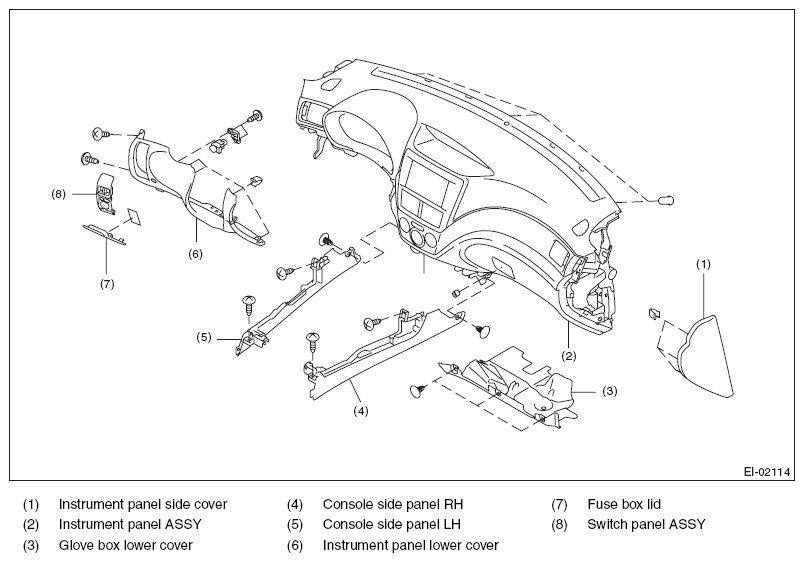

Fig 4: Identifying Instrument Panel Components (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 25 (2.55, 18.4)

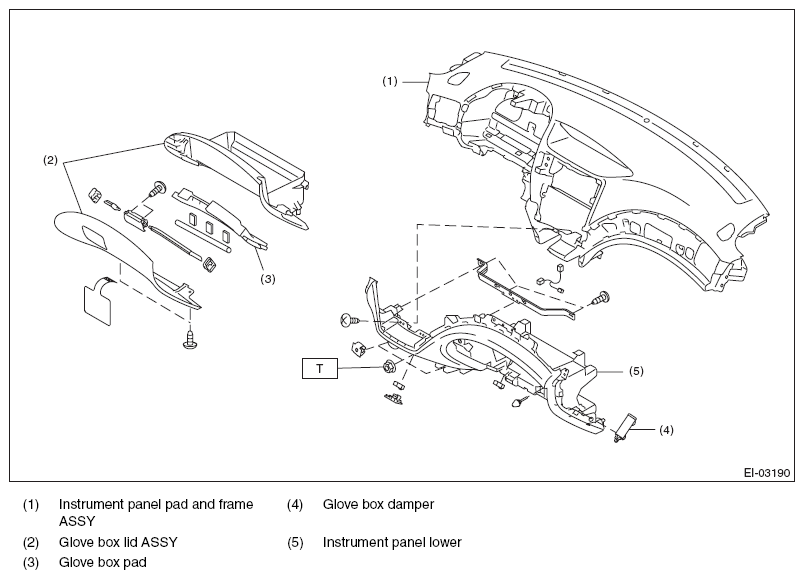

Fig 5: Identifying Instrument Panel Components (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
