15. Console Box

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

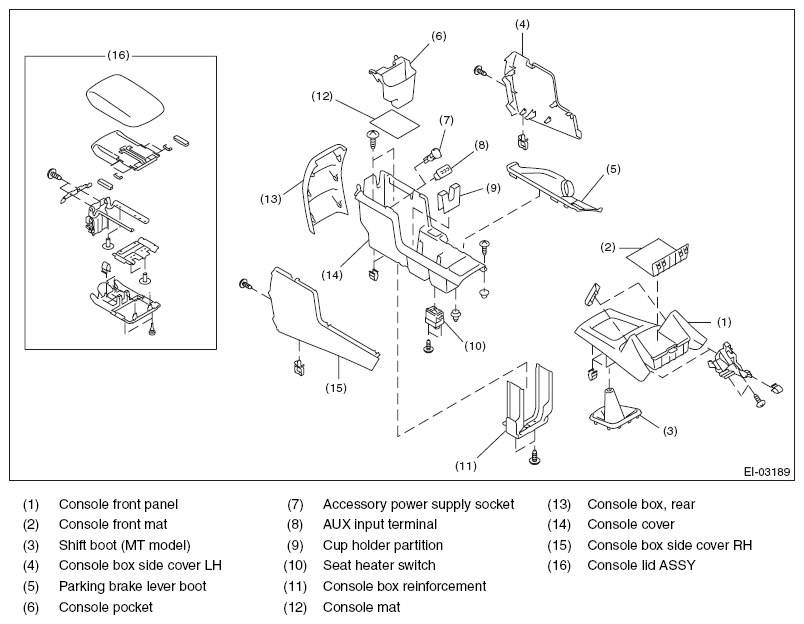

Fig 1: Identifying Console Box Components
G08566633Courtesy of SUBARU OF AMERICA, INC.
