Heater Cooling Unit

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Auto A/C model

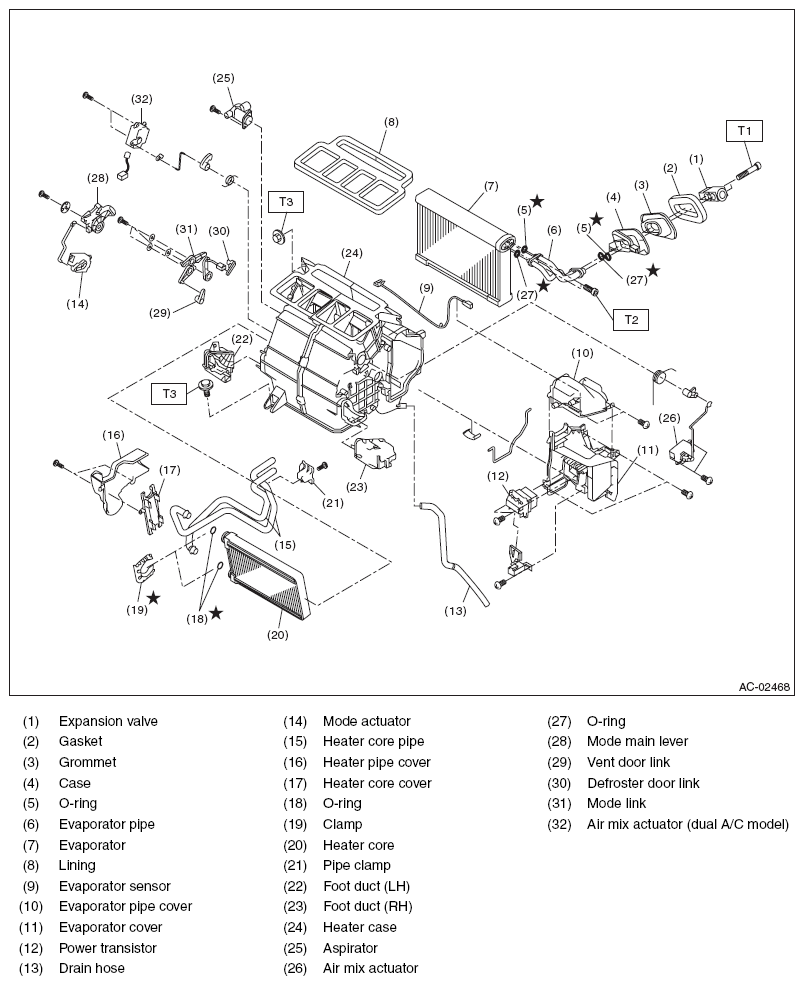

Fig 1: Exploded View Of Heater Cooling Unit With Torque Specifications (Auto A/C Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.0 (0.51, 3.7)

T2: 6.7 (0.68, 4.9)

T3: 7.5 (0.76, 5.5)

Manual A/C model

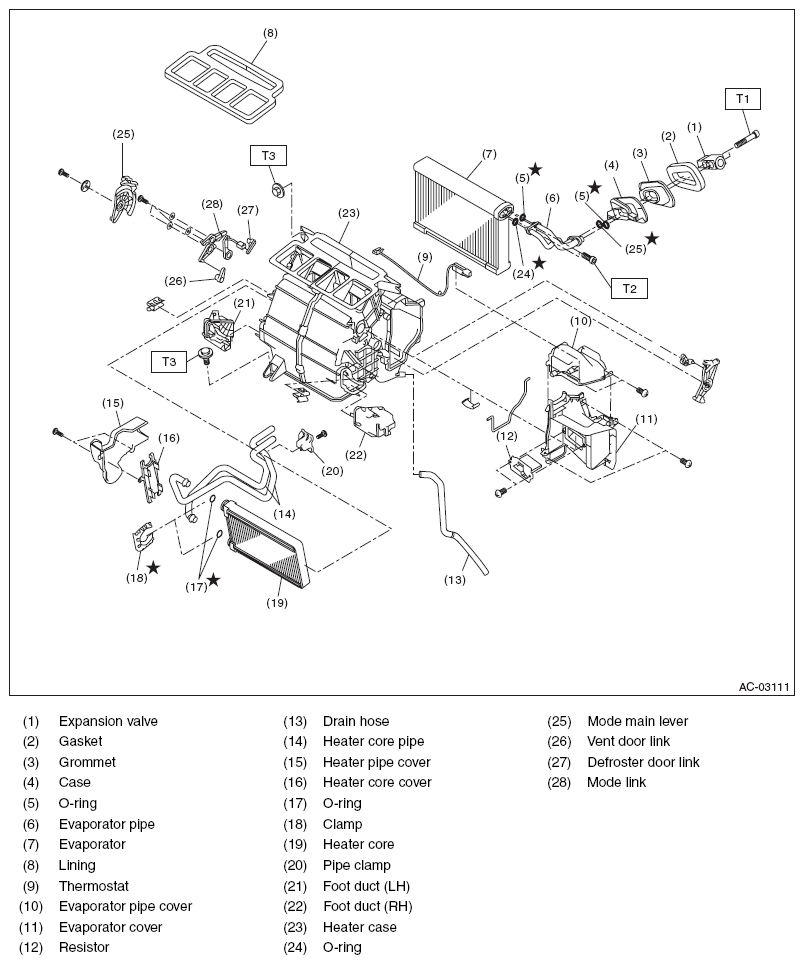

Fig 2: Exploded View Of Heater Cooling Unit With Torque Specifications (Manual A/C Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.0 (0.51, 3.7)

T2: 6.7 (0.68, 4.9)

T3: 7.5 (0.76, 5.5)
