Control Module

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Single auto A/C model

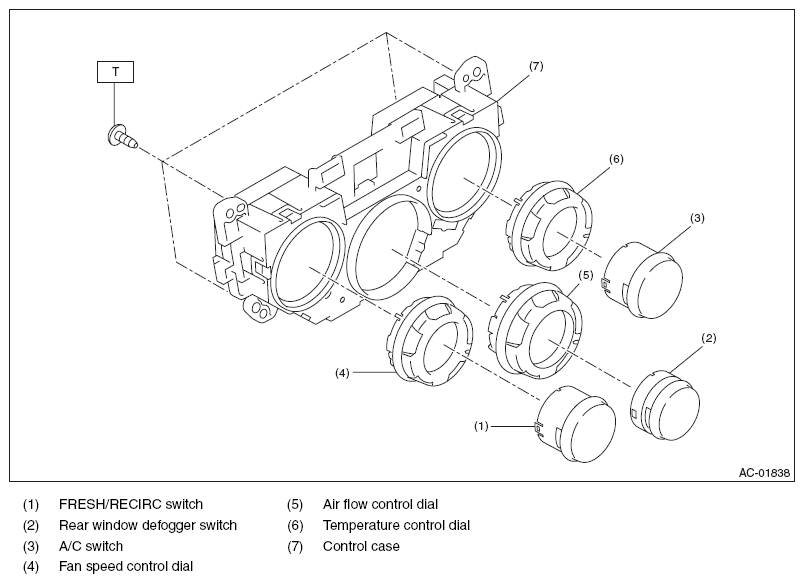

Fig 1: Exploded View Of Control Module With Torque Specifications (Single Auto A/C Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 2 (0.20, 1.48)

Dual auto A/C model

Fig 2: Exploded View Of Control Module With Torque Specifications (Dual Auto A/C Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 2 (0.20, 1.48)

Manual A/C model

Fig 3: Exploded View Of Control Module With Torque Specifications (Manual A/C Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 2 (0.20, 1.5)
