Components With Torque Specifications: Compressor

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Non-turbo model

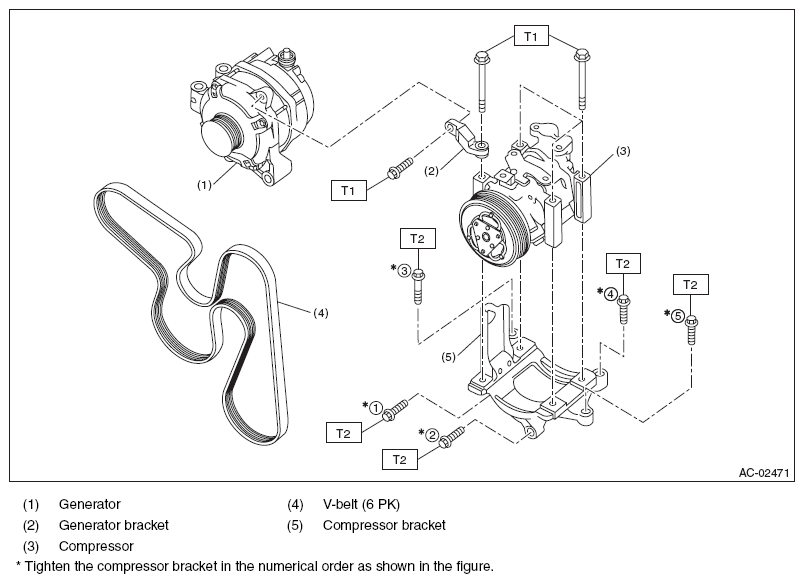

Fig 1: Compressor And Related Replacement Components With Torque Specifications (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.55, 18.4)

T2: 36 (3.67, 26.6)

Turbo model

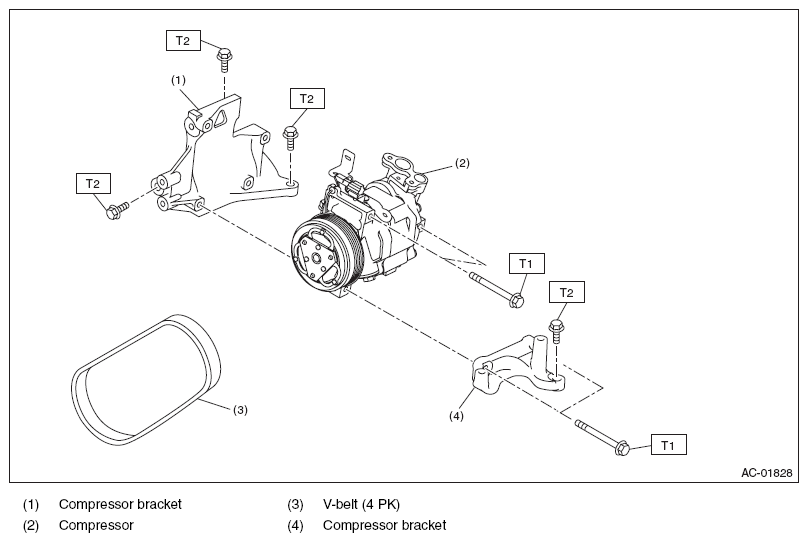

Fig 2: Compressor And Related Replacement Components With Torque Specifications (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 26.5 (2.70, 19.5)

T2: 36 (3.67, 26.6)
