Air Conditioning Unit

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Non-turbo model

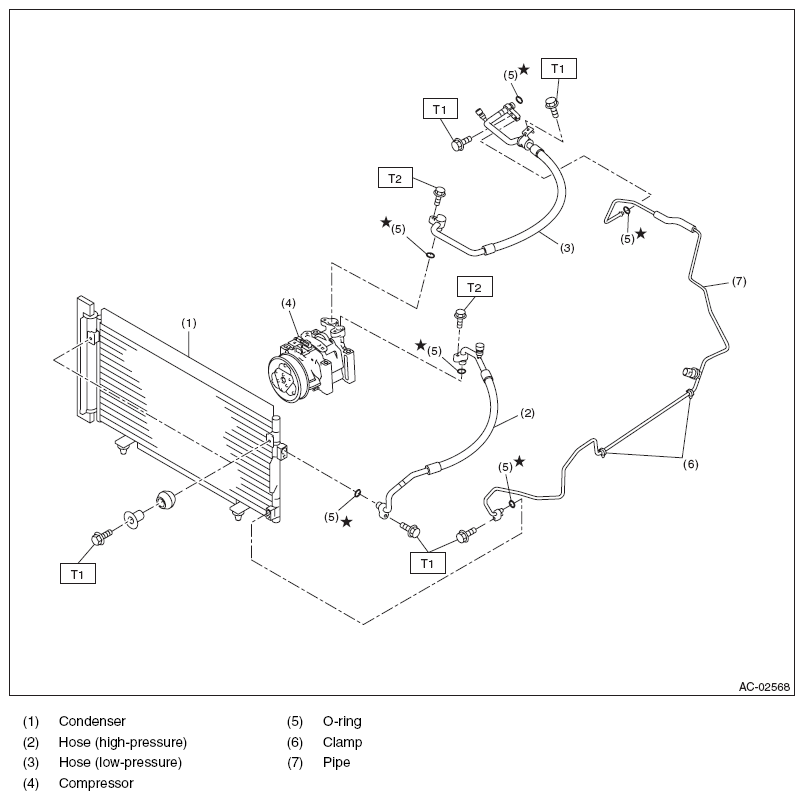

Fig 1: Exploded View Of Air Conditioning Unit With Torque Specifications (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 10 (1.02, 7.4)

Turbo model

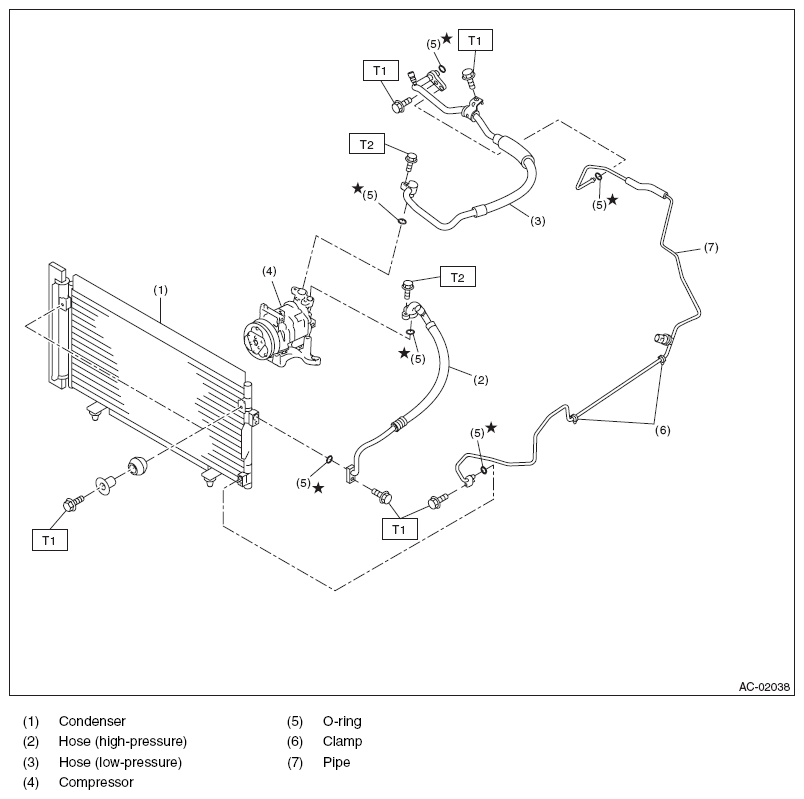

Fig 2: Exploded View Of Air Conditioning Unit With Torque Specifications (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 10 (1.02, 7.4)
