Propeller Shaft

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

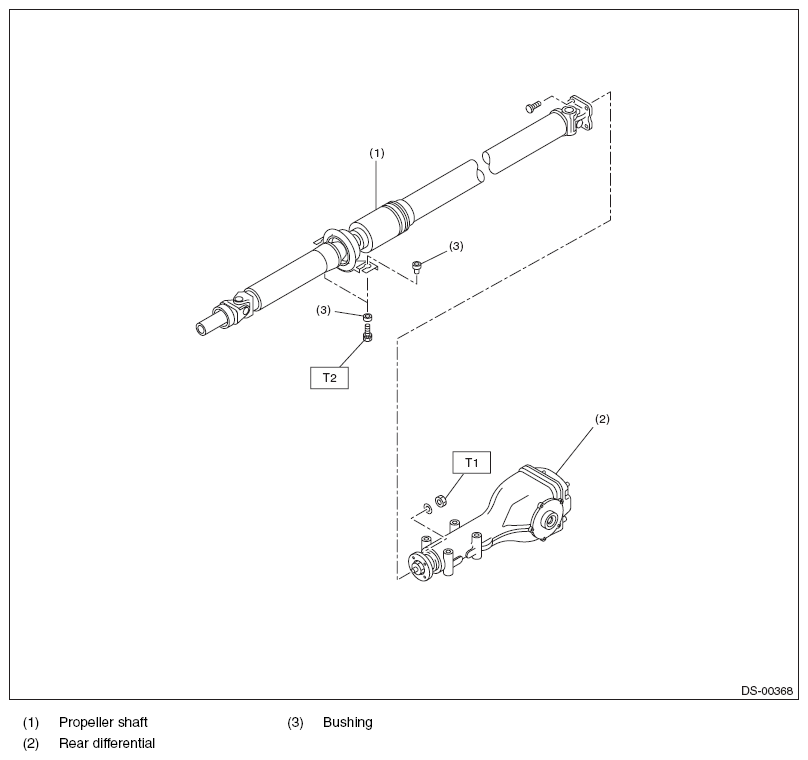

Fig 1: Propeller Shaft, Bushing, Rear Differential And Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T1: 31 (3.16, 22.9)

T2: 52 (5.30, 38.4)
