Rear Suspension

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

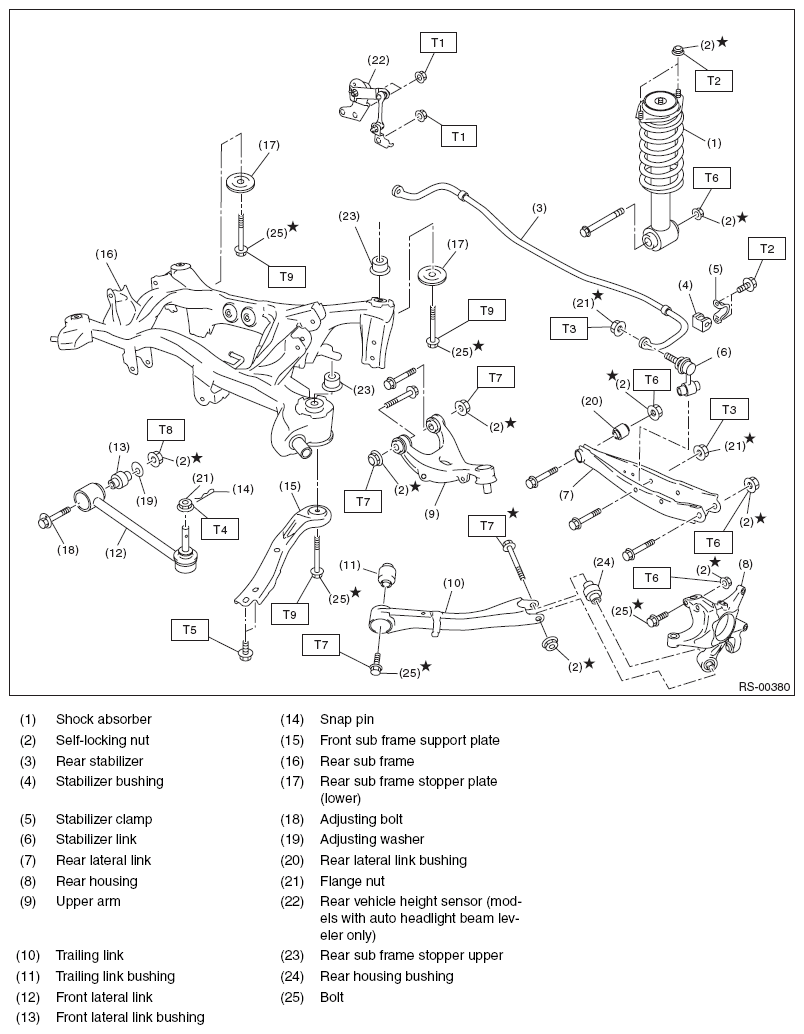

Fig 1: Identifying Rear Suspension And Related Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 30 (3.06, 22.1)

T3: 38 (3.87, 28.0)

T4: 60 (6.12, 44.3)

T5: 70 (7.14, 51.6)

T6: 80 (8.16, 59.0)

T7: 90 (9.18, 66.4)

T8: 100 (10.20, 73.8)

T9: 145 (14.79, 106.9)
