Front Crossmember Support Plate: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle
Remove the front under cover. < Refer to REMOVAL , Front Under Cover. >
Remove the bolt and remove front crossmember support plate.
- Large type

  Fig 1: Identifying Front Crossmember Support Plate (Body Center Line)
  Courtesy of SUBARU OF AMERICA, INC.
- Small type

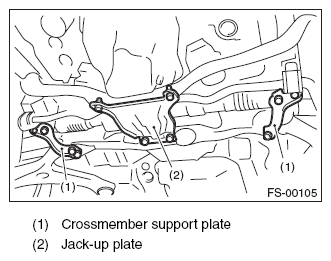

  Fig 2: Identifying Front Crossmember Support And Jack-Up Plates (Body Center Line)
  Courtesy of SUBARU OF AMERICA, INC.
