When Reverse Is Selected
WARNING: This page is about a different car, the 2013 Subaru Forester, 2012 Subaru Forester, 2011 Subaru Forester, and 2010 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

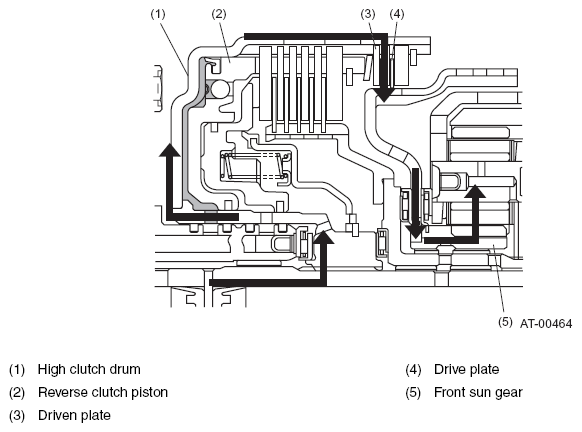

Hydraulic pressure from the control valve is applied to the reverse clutch piston when a shift is made into the reverse. The drive and driven plates are pressed together by this pressure, so that the engine torque from the high clutch drum is transmitted to the front sun gear through the 2-4 brake hub.
