Low Clutch: Construction

WARNING: This page is about a different car, the 2013 Subaru Forester, 2012 Subaru Forester, 2011 Subaru Forester, and 2010 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

The low clutch consists of a drum, piston, return springs, cover, drive plates, driven plates, one-way clutch, and the retaining plate.

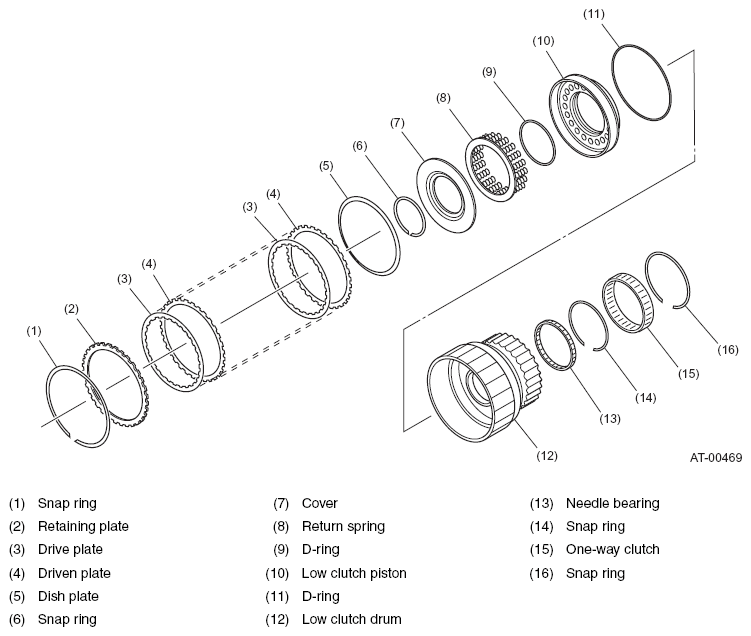

Fig 1: Exploded View Of Low Clutch

Courtesy of SUBARU OF AMERICA, INC.
