Low & Reverse Brake: Construction

WARNING: This page is about a different car, the 2013 Subaru Forester, 2012 Subaru Forester, 2011 Subaru Forester, and 2010 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

The low & reverse brake consists of a piston, a dish plate, drive plates, driven plates, a retaining plate and a snap ring that fits in a housing formed in the transmission case.

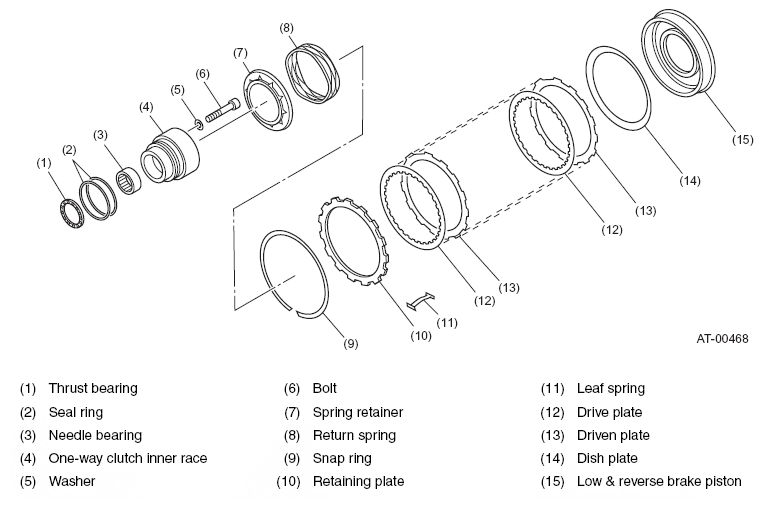

Fig 1: Exploded View Of Low And Reverse Brake

Courtesy of SUBARU OF AMERICA, INC.
