Parking Pawl: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. < Refer to REMOVAL , Automatic Transmission Assembly. >
  2. Separate the extension case from the transmission case. < Refer to REMOVAL , Extension Case. >
  3. Remove the reduction drive gear. < Refer to REMOVAL , Reduction Drive Gear. >
  4. Remove the parking pawl, return spring and shaft.

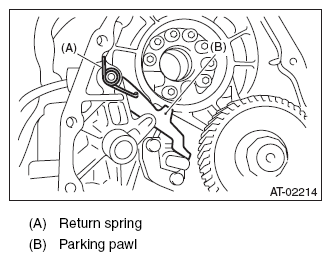

    Fig 1: Identifying Parking Pawl And Return Spring
    G08564040Courtesy of SUBARU OF AMERICA, INC.
