Oil Pump Cover

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the four seal rings.

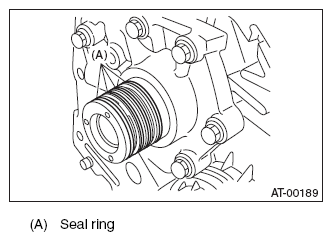

Fig 1: Identifying Oil Pump Cover Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Remove attachment bolts, then remove the oil pump cover by lightly tapping the end of the stator shaft.

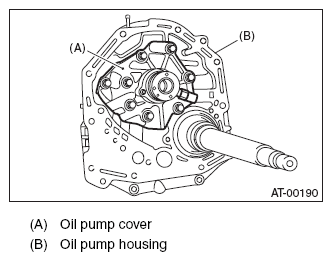

Fig 2: Identifying Oil Pump Cover And Housing
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pump inner rotor and outer rotor.

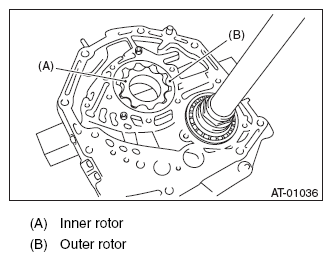

Fig 3: Identifying Oil Pump Inner And Outer Rotor
Courtesy of SUBARU OF AMERICA, INC.
