High Clutch And Reverse Clutch

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the snap ring, and then take out the retaining plate, drive plate and driven plate.

Fig 1: Identifying High And Reverse Clutch Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring, and then take out the retaining plate, drive plate and driven plate.

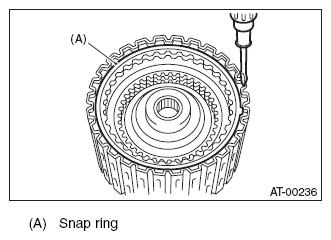

Fig 2: Removing Snap Ring Using Tool
Courtesy of SUBARU OF AMERICA, INC.
Using the ST1 and ST2, remove the snap ring.
ST1 398673600 COMPRESSOR

ST2 498627100 SEAT

Fig 3: Removing Snap Ring Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
Take out the clutch cover, spring retainer, high clutch piston and reverse clutch piston.

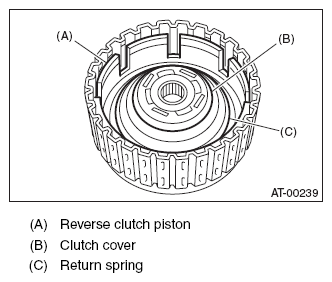

Fig 4: Identifying Reverse Clutch Piston, Clutch Cover And Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the seal ring and lip seal from the high clutch piston and reverse clutch piston.

Fig 5: Removing Seal Ring And Lip Seal From High Clutch Piston And Reverse Clutch Piston
Courtesy of SUBARU OF AMERICA, INC.
