Planetary Gear And Low Clutch

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply ATF to the D-ring, and install it to the low clutch piston.
    NOTE: Use a new D-ring.
  2. Install the low clutch piston to low clutch drum.
    NOTE: Be careful not to damage the D-ring.
    Fig 1: Installing Low Clutch Piston To Low Clutch Drum
    G08564208Courtesy of SUBARU OF AMERICA, INC.
  3. Install the spring retainer to low clutch piston.
    Fig 2: Installing Spring Retainer To Low Clutch Piston
    G08564209Courtesy of SUBARU OF AMERICA, INC.
  4. Attach the ST to the low clutch drum.

    ST 498437100 LOW CLUTCH PISTON

    Fig 3: Identifying Special Tool Attached To Low Clutch Drum
    G05002824Courtesy of SUBARU OF AMERICA, INC.
  5. Using ST1, ST2 and ST3, set the cover on the piston and press against it, and attach the snap ring. At this time, be careful not to bend the cover seal.

    ST1 498627100 SEAT

    ST2 398673600 COMPRESSOR

    ST3 498437100 LOW CLUTCH PISTON GUIDE

    Fig 4: Installing Snap Ring Using ST1, ST2, And ST3
    G05002825Courtesy of SUBARU OF AMERICA, INC.
  6. Install the dish plate, driven plate, drive plate and retaining plate, and then secure them with a snap ring.

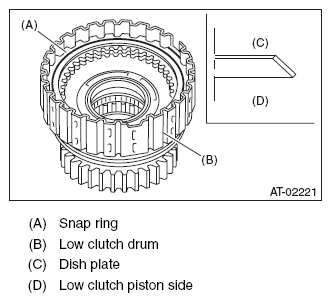

    Fig 5: Identifying Snap Ring, Low Clutch Drum, Dish Plate And Low Clutch Piston Side
    G08564212Courtesy of SUBARU OF AMERICA, INC.
  7. Check the low clutch for operation.
    1. Remove the one-way clutch. < Refer to REMOVAL , AT Main Case. >
    2. Set the one-way clutch inner race, and apply compressed air for checking.
      Fig 6: Identifying Low Clutch Drum
      G08564213Courtesy of SUBARU OF AMERICA, INC.
  8. Check the low clutch clearance.
    1. Place same thickness shims on both sides to prevent plate from tilting.
    2. Check the clearance between the retaining plate and snap ring.

      Initial standard:

      0.7 - 1.1 mm (0.028 - 0.043 in)

      Limit thickness:

      1.6 mm (0.063 in)

      Fig 7: Checking Clearance Between Retaining Plate And Snap Ring
      G08564214Courtesy of SUBARU OF AMERICA, INC.

      If the clearance exceeds the service limits, replace the drive plate, then select and adjust the retaining plate so that the clearance is within default standard values.

    Retaining plate
    Part No. Thickness mm (in)
    31567AB050 3.8 (0.150)
    31567AB060 4.0 (0.157)
    31567AB070 4.2 (0.165)
    31567AB080 4.4 (0.173)
    31567AB090 4.6 (0.181)
  9. Install the washer to the rear internal gear.
    Fig 8: Identifying Rear Internal Gear And Washer
    G08564215Courtesy of SUBARU OF AMERICA, INC.
  10. Install the rear internal gear.
    Fig 9: Installing Rear Internal Gear
    G08564216Courtesy of SUBARU OF AMERICA, INC.
  11. Install the thrust needle bearing in the correct direction.
    Fig 10: Installing Thrust Needle Bearing
    G08564217Courtesy of SUBARU OF AMERICA, INC.
  12. Install the washer by aligning the protrusion of the washer with the hole of the rear planetary carrier.
    Fig 11: Identifying Washer And Rear Planetary Carrier
    G08564218Courtesy of SUBARU OF AMERICA, INC.
  13. Install the rear planetary carrier to the low clutch drum.
    Fig 12: Installing Rear Planetary Carrier To Low Clutch Drum
    G08564219Courtesy of SUBARU OF AMERICA, INC.
  14. Install the thrust needle bearing in the correct direction.
    Fig 13: Installing Thrust Needle Bearing
    G08564220Courtesy of SUBARU OF AMERICA, INC.
  15. Install the rear sun gear in the correct direction.
    Fig 14: Identifying Rear Sun Gear And Planetary Carrier
    G08564221Courtesy of SUBARU OF AMERICA, INC.
  16. Install the thrust needle bearing in the correct direction.
    Fig 15: Installing Thrust Needle Bearing
    G08564222Courtesy of SUBARU OF AMERICA, INC.
  17. Install the front planetary carrier to the low clutch drum.
    Fig 16: Identifying Front Planetary Carrier And Low Clutch Drum
    G08564223Courtesy of SUBARU OF AMERICA, INC.
  18. Install the snap ring to the low clutch drum.
    Fig 17: Identifying Snap Ring And Front Planetary Carrier
    G08564224Courtesy of SUBARU OF AMERICA, INC.
  19. Install the needle bearing, and then secure with the snap ring.
    Fig 18: Identifying Needle Bearing And Snap Ring
    G08564225Courtesy of SUBARU OF AMERICA, INC.
  20. Install the one-way clutch and one-way clutch inner race, then secure with the snap ring.
  21. Set the inner race. Make sure that the clutch locks in the clockwise direction and rotates freely in the counterclockwise direction.
    Fig 19: Locking Clutch In Clockwise Direction
    G08564226Courtesy of SUBARU OF AMERICA, INC.
