Check Fwd Switch: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

AT Control System < Refer to appropriate SYSTEM WIRING DIAGRAM. >

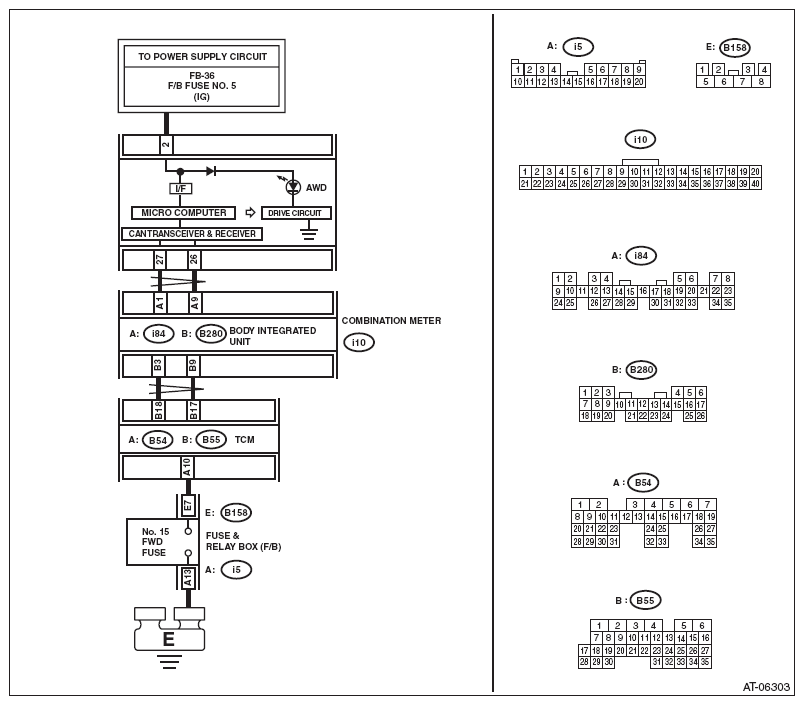

Fig 1: AT Control System - Wiring Diagram (FWD Switch)
G08564274Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK INDICATOR.
Turn the ignition switch to ON.		 Is the AWD warning light illuminated? Go to step 2  . Perform the self-diagnosis of combination meter. < Refer to INSPECTION , Combination Meter System. >
2 CHECK INDICATOR.
Turn the ignition switch to ON and wait for at least 2 seconds.		 Is the AWD warning light illuminated? Go to step 3  . Go to step 6  .
3 CHECK INDICATOR.
Start the engine and wait for 2 seconds or more.		 Does the AWD warning light go off? Go to step 4  . Go to step 11  .
4 CHECK SPARE FUSE.  Is the spare fuse OK? Go to step 5  . Replace the fuse.
5 CHECK INDICATOR.
  1. Turn the ignition switch to OFF.
  2. Install a fuse to the FWD fuse holder.
  3. Start the engine and wait for 2 seconds or more.
 Is the AWD warning light illuminated? Normal. Finish the diagnosis. Go to step 6  .
6 CHECK BODY INTEGRATED UNIT.  Is DTC of CAN communication displayed? Perform the diagnosis according to DTC. Go to step 7  .
7 CHECK TCM.
  1. Turn the ignition switch to OFF.
  2. Install a fuse to the FWD fuse holder.
  3. Connect the Subaru Select Monitor to data link connector.
  4. Turn the ignition switch to ON.
  5. Read the data of «FWD Switch» using Subaru Select Monitor.
 Is "ON" displayed? Perform the self-diagnosis of combination meter. < Refer to INSPECTION , Combination Meter System. > Go to step 8  .
8 CHECK HARNESS CONNECTOR BETWEEN TCM AND FUSE BOX.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connectors from TCM and fuse box.
  3. Measure the resistance of the harness between TCM connector and fuse box.

    Connector & terminal

    (B54) No. 10 - (B158) No. 7:

 Is the resistance less than 1 Ω? Go to step 9  . Repair the open circuit of harness between TCM and fuse box.
9 CHECK HARNESS CONNECTOR BETWEEN FUSE BOX AND CHASSIS GROUND.
Measure the resistance of the harness between fuse box and chassis ground.
Connector & terminal
(i5) No. 13 - Chassis ground: 		 Is the resistance less than 1 Ω? Go to step 10  . Repair the open circuit of harness between fuse box and chassis ground.
10 CHECK FOR POOR CONTACT.
Check poor contact of FWD switch circuit.		 Is there poor contact of FWD switch circuit? Repair the poor contact. Replace the TCM. < Refer to TRANSMISSION CONTROL MODULE (TCM) . >
11 CHECK TCM.
  1. Turn the ignition switch to OFF.
  2. Connect the Subaru Select Monitor to data link connector.
  3. Start the engine.
  4. Read the data of «Engine Speed» using Subaru Select Monitor.
 Is the measured value 400 rpm or more? Go to step 12  . Inspect the ECM.
12 CHECK TCM.
Read the data of «FWD Switch» using Subaru Select Monitor.		 Is "OFF" displayed? Perform the self-diagnosis of combination meter. < Refer to INSPECTION , Combination Meter System. > Go to step 13  .
13 CHECK HARNESS CONNECTOR BETWEEN TCM AND FUSE BOX.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connectors from TCM and fuse box.
  3. Measure the resistance of harness connector between TCM and chassis ground.

    Connector & terminal

    (B54) No. 10 - Chassis ground:

 Is the resistance 1 MΩ or more? Replace the TCM. < Refer to TRANSMISSION CONTROL MODULE (TCM) . > Repair the short circuit of harness between TCM and fuse box.
