Clutch Pipe and Hose: Installation
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal.
NOTE:
Bleed air from the clutch fluid. < Refer to
CLUTCH FLUID AIR BLEEDING . >

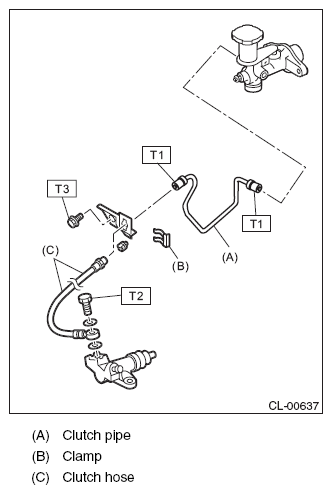

Tightening torque:
T1: 15 N.m (1.5 kgf-m, 11.1 ft-lb)
T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
T3: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
