Clutch Pedal: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the steering column. < Refer to REMOVAL , Steering Column. >
Disconnect the connector from the stop light switch and clutch switch.
Remove the snap pins from clevis pins which secure the lever to the push rod and operating rod.
Pull out the clevis pins which secures the lever to the push rod and operating rod.

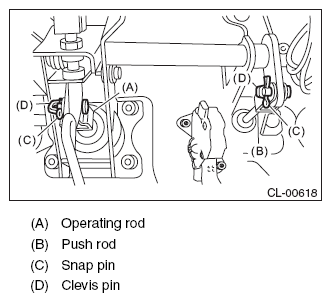

Fig 1: Identifying Operating Rod, Push Rod, Snap Pin And Clevis Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot assembly. < Refer to REMOVAL , Air Intake Boot. >
Remove the nut which secures the clutch master cylinder.

Fig 2: Identifying Clutch Master Cylinder Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and nuts which secure the brake pedal and clutch pedal, and remove the pedal assembly.
