Clutch Fluid: Inspection

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Park the vehicle on a level surface.
  2. Check the clutch fluid level using the scale on the outside of the reservoir tank. If the level is below "MIN", fill the clutch fluid up to "MAX" level, and make sure that there is no leakage.

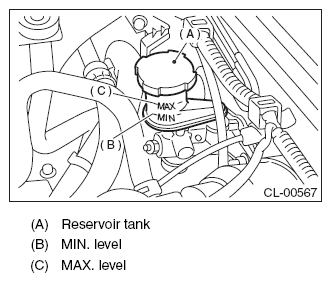

    Fig 1: Identifying Maximum And Minimum Clutch Fluid Level On Reservoir Tank
    G08571822Courtesy of SUBARU OF AMERICA, INC.
