Reservoir Tank: Removal
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

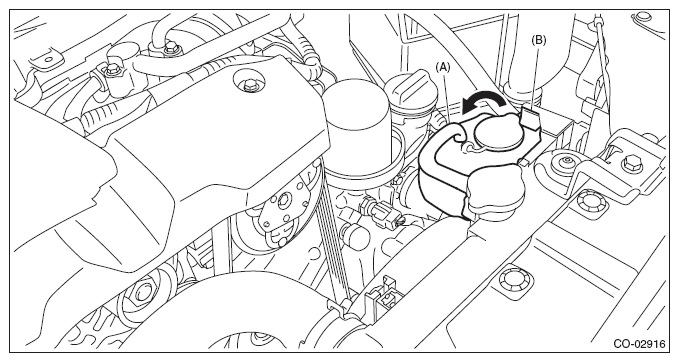

- Disconnect the over flow hose (A) connected to the radiator filler neck from the reservoir tank.
- Pull out the reservoir tank to the arrow direction while pushing the claw (B).
Courtesy of SUBARU OF AMERICA, INC.
