Connecting The Fuel Line Quick Connector

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Make sure there are no damage or dust on connections. If necessary, clean seal surface of pipe.

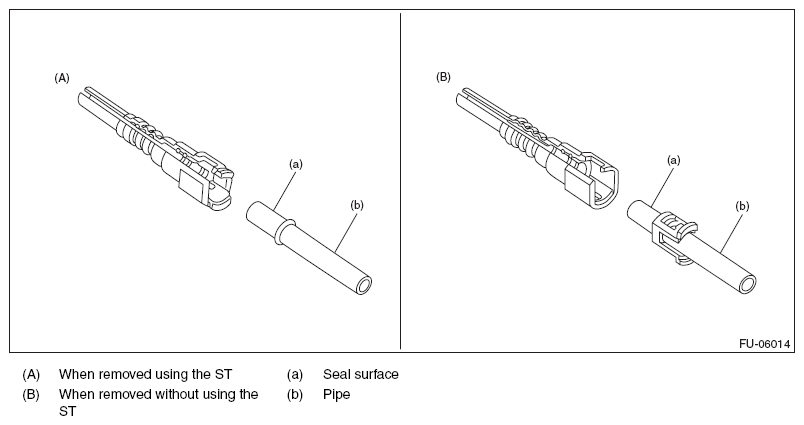

Fig 1: Identifying Quick Connector Seal Surface And Pipe
Courtesy of SUBARU OF AMERICA, INC.
When reusing the retainer, make sure that neither scratches nor deformation exist on the retainer. If it is faulty, use a new part.

Connect the quick connector to pipe.
CAUTION:
- Make sure that the quick connector is securely connected.

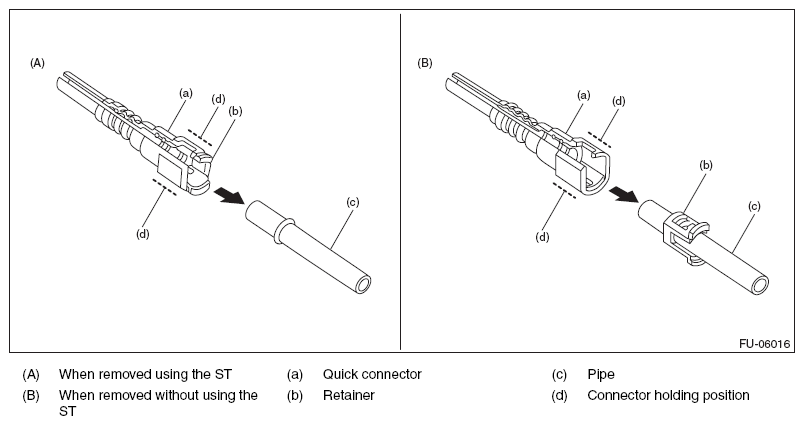

  Fig 2: Connecting Quick Connector To Pipe
  Courtesy of SUBARU OF AMERICA, INC.
- Make sure the two retainer pawls are engaged in their mating positions in the quick connector.
- Be sure to inspect tubes and their connections for any leakage of fuel.
- To connect the connector, hold (d) shown in the figure and push in axial direction.
- When connecting the connector, do not bend or twist the tube forcibly. If the tube is bent, replace with a new part.

  Fig 3: Connecting Quick Connector
