Section 11 (Engine Cooling System (H4DOTC)): Thermostat: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install a gasket to thermostat.
NOTE: Use a new gasket.
Install the thermostat and thermostat cover.
NOTE: Install the parts with the jiggle pin facing upward.

Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

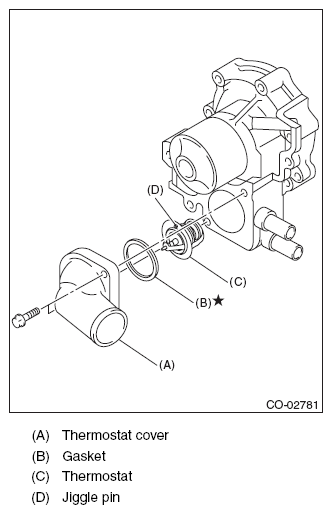

Fig 1: Identifying Thermostat Cover, Gasket, Thermostat And Jiggle Pin
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator outlet hose to thermostat cover.
Install the under cover.< Refer to INSTALLATION , Front Under Cover. >
Lower the vehicle.
Fill engine coolant.< Refer to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
