Section 11 (Engine Cooling System (H4DOTC))
>>
Radiator Fan System
>>
Wiring Diagram
Radiator Fan System: Wiring Diagram
WARNING:
This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Fan System< Refer to SYSTEM WIRING DIAGRAM. >

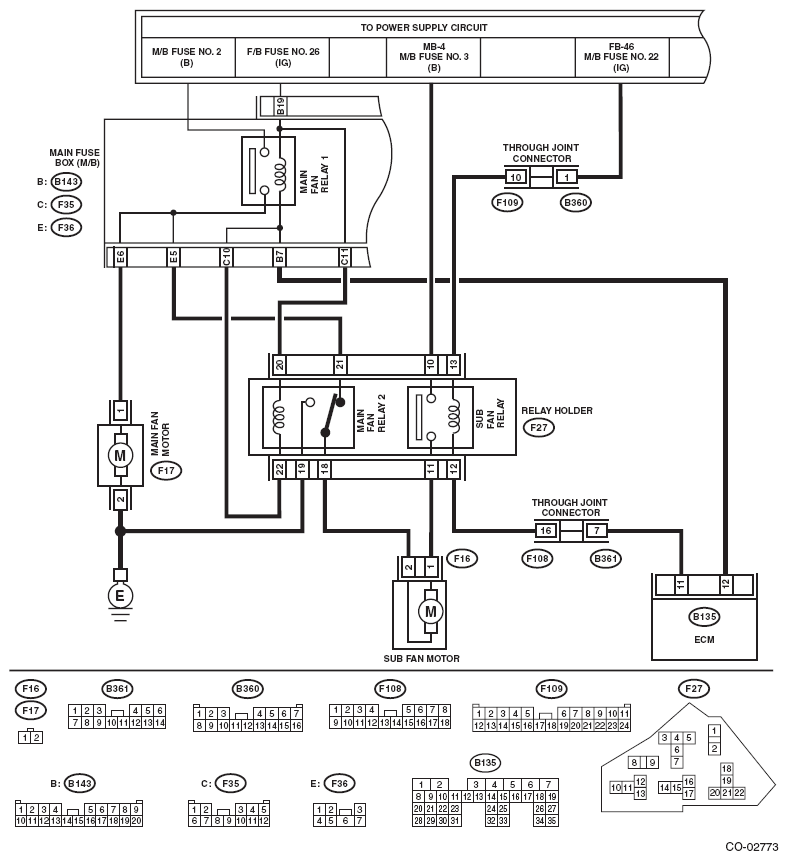

Fig 1: Radiator Fan System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
