When A Shift From 5TH To Reverse Is Attempted
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2014 Subaru XV Crosstrek, 2014 Subaru Impreza WRX, 2014 Subaru Impreza, 2013 Subaru XV Crosstrek, and 2013 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

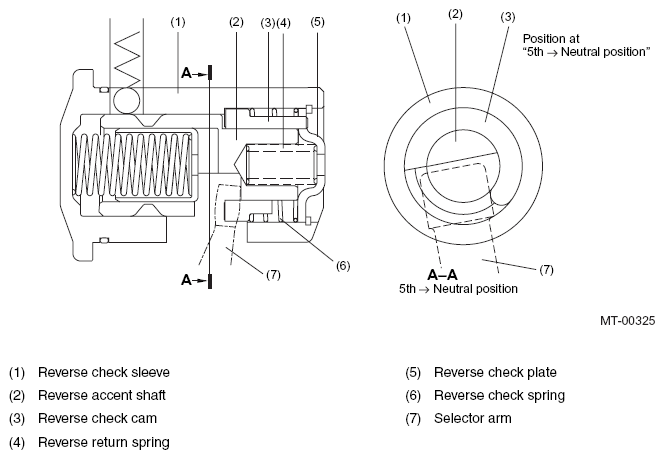

The selector arm turns toward the reverse gear while pushing the reverse accent shaft rightward and the reverse check cam counterclockwise (as viewed in the direction of arrows A).
The reverse check cam, however, stops to rotate at a point where its stopper hits against the reverse check plate (this point corresponds to the neutral position in terms of the angle) and prevents the selector arm from moving toward the reverse gear selection direction. The selector arm is then axially pushed to the neutral position by the reverse accent shaft, which is given a leftward force by the reverse return spring.
