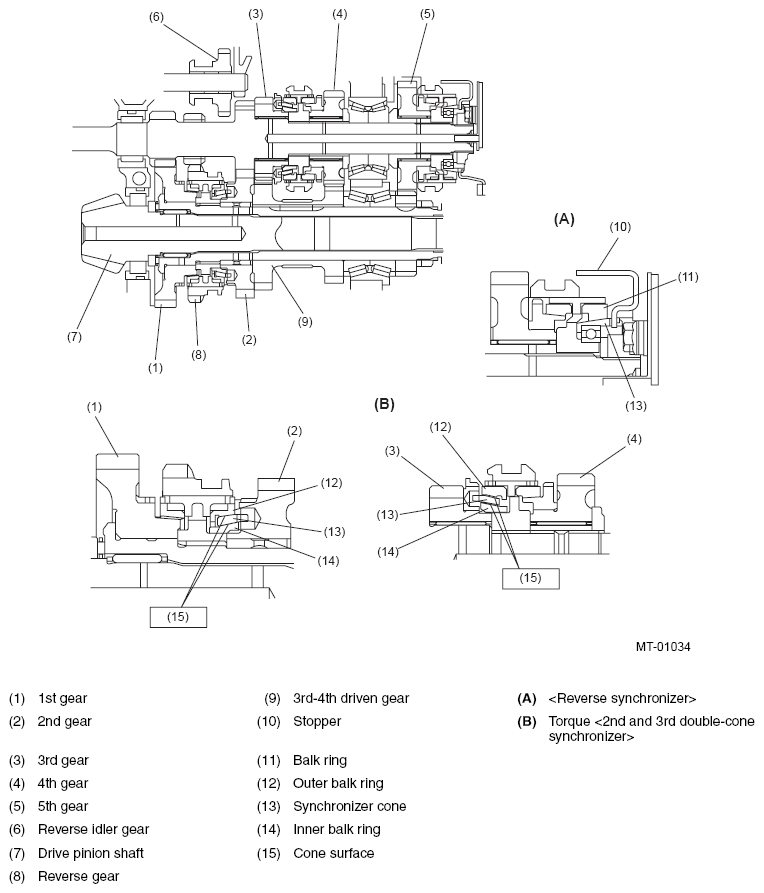

Gearshift Mechanism: Construction
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2014 Subaru XV Crosstrek, 2014 Subaru Impreza WRX, 2014 Subaru Impreza, 2013 Subaru XV Crosstrek, and 2013 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
- Helical gears are used for forward speed gears. Reverse speed is achieved by making the drive gear to mesh with the main shaft while making the driven gear and reverse idler gear to mesh with the 1st-2nd synchronizer sleeve of the drive pinion, in order to reverse the rotating direction.
- The synchromesh mechanism for 1st and 2nd speeds are placed at the drive pinion side, while the mechanism for 3rd, 4th, 5th and reverse speeds are placed at the main shaft side.
- On non-turbo models, a double cone synchromesh mechanism is used for 2nd and 3rd speed gears.
- On turbo models, a double cone synchromesh mechanism is used for 1st, 2nd and 3rd speed gears.
