Mechanism Of Viscous Coupling: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2014 Subaru XV Crosstrek, 2014 Subaru Impreza WRX, 2014 Subaru Impreza, 2013 Subaru XV Crosstrek, and 2013 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

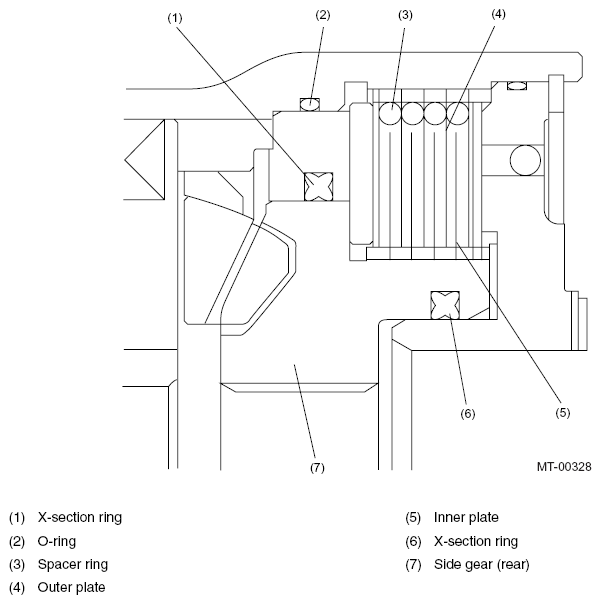

The viscous coupling consists of a number of alternately arranged inner and outer plates and air-and-silicone oil mixture filled into a sealed space that is formed by the center differential case and the rear side gear of the differential gear set. The inner plates have their inner perimeters splined to the side gear and the outer plates have their outer perimeters splined to the center differential case. The outer plates are held apart by spacer rings. There are no spacer rings between the inner rings, so the inner rings are movable slightly in axial directions. X-section rings are used to prevent leakage of silicone oil, which would otherwise occur if the oil is pressurized due to large difference in front and rear axle speeds.
