Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts

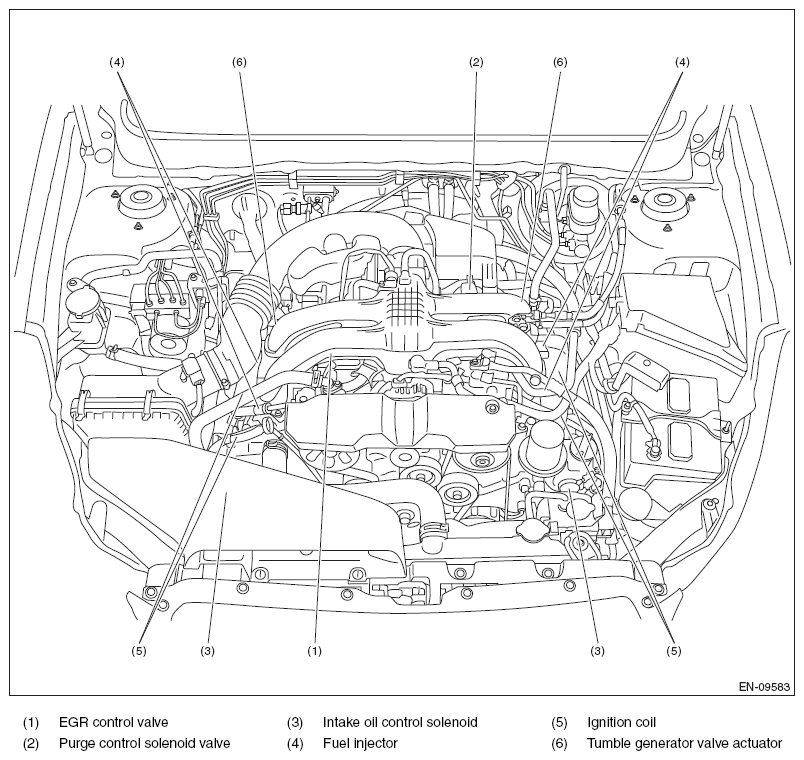

Fig 1: Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

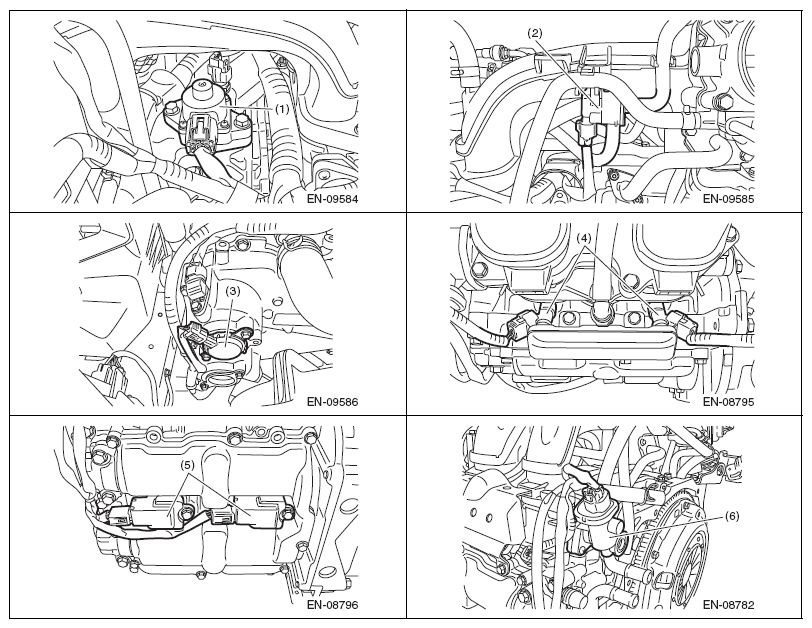

Fig 2: Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

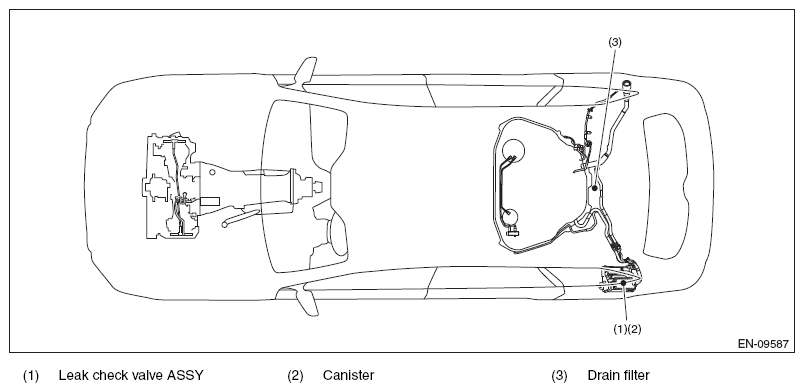

Fig 3: Identifying Leak Check Valve Assembly, Canister And Drain Filter

Courtesy of SUBARU OF AMERICA, INC.

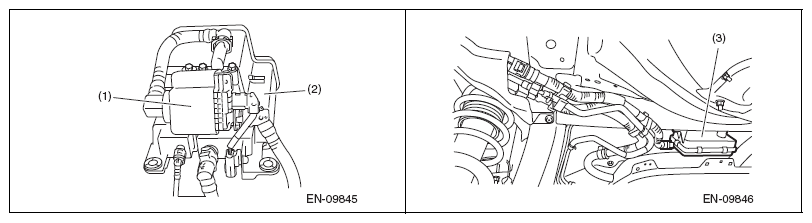

Fig 4: Identifying Leak Check Valve Assembly And Canister

Courtesy of SUBARU OF AMERICA, INC.

• Model without push button start

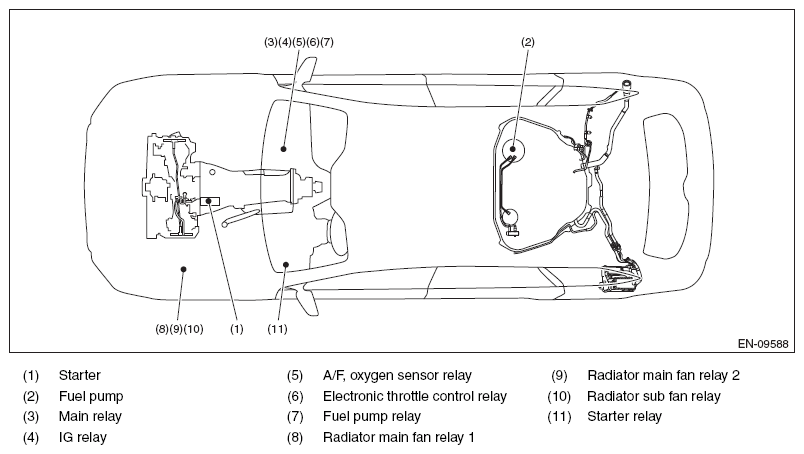

  Fig 5: Identifying Engine Electrical Components Location (Model Without Push Button Start)

  Courtesy of SUBARU OF AMERICA, INC.

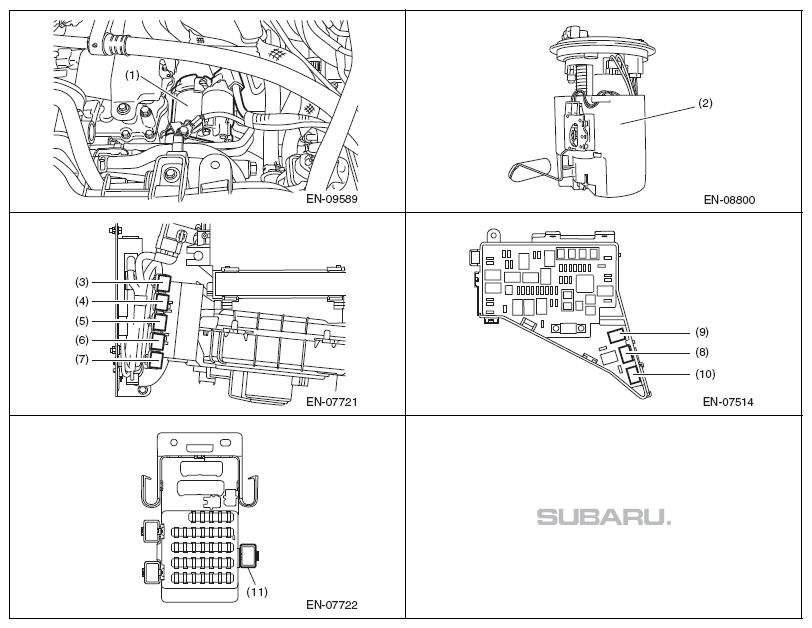

  Fig 6: Identifying Starter (Model Without Push Button Start)

  Courtesy of SUBARU OF AMERICA, INC.
• Model with push button start

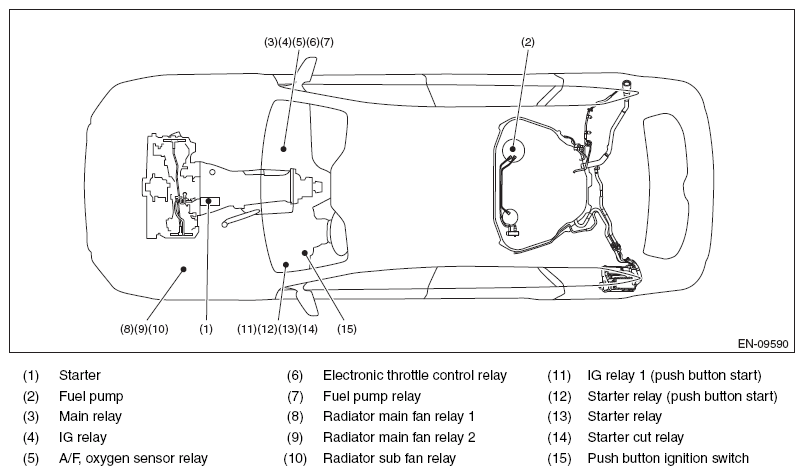

  Fig 7: Identifying Engine Electrical Components Location (Model With Push Button Start)

  Courtesy of SUBARU OF AMERICA, INC.

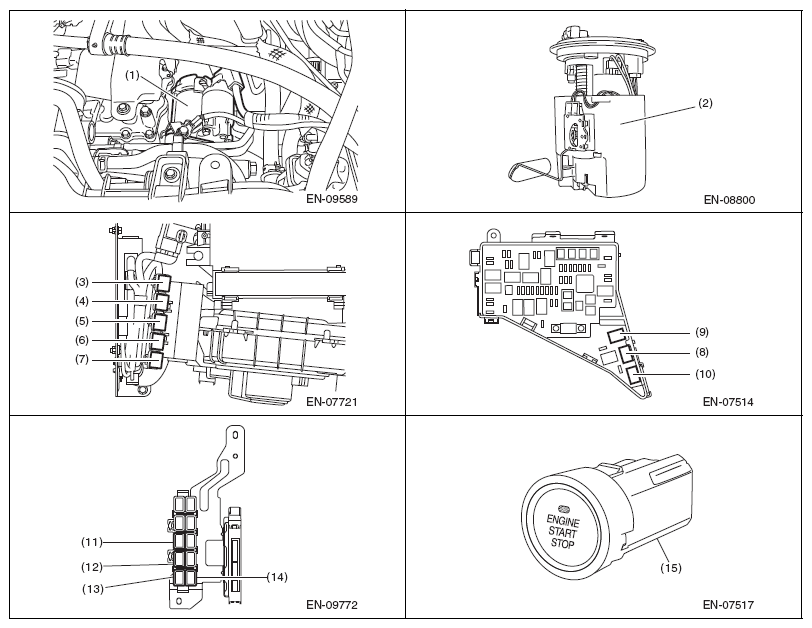

  Fig 8: Identifying Starter (Model With Push Button Start)

  Courtesy of SUBARU OF AMERICA, INC.
